Features: ANALOG FEATURES
` 24 Bits No Missing Codes
` 22 Bits Effective Resolution at 10Hz
− Low Noise: 75nV
` PGA From 1 to 128
` Precision On-Chip Voltage Reference
− Accuracy: 0.2%
− Drift: 5ppm/°C
` 8 Differential/Single-Ended Channels
` On-Chip Offset/Gain Calibration
` Offset Drift: 0.02ppm/°C
` Gain Drift: 0.5ppm/°C
` On-Chip Temperature Sensor
` Selectable Buffer Input
` Burnout Detect
` 16-Bit Monotonic Voltage DACS:
− Quad Voltage DACs (MSC1211, MSC1212)
− Dual Voltage DACs (MSC1213, MSC1214)
DIGITAL FEATURES
Microcontroller Core
` 8051-Compatible
` High-Speed Core
− 4 Clocks per Instruction Cycle
` DC to 40MHz at +85C
` Single Instruction 100ns
` Dual Data Pointer
Memory
` Up To 32kB Flash Memory
` Flash Memory Partitioning
` Endurance 1M Erase/Write Cycles,100-Year Data Retention
` In-System Serially Programmable
` External Program/Data Memory (64kB)
` 1,280 Bytes Data SRAM
` Flash Memory Security
` 2kB Boot ROM
` Programmable Wait State Control
Peripheral Features
` 34 I/O Pins
` Additional 32-Bit Accumulator
` Three 16-Bit Timer/Counters
` System Timers
` Programmable Watchdog Timer
` Full-Duplex Dual USARTs
` Master/Slave SPITM with DMA
` Multi-master I2CTM (MSC1211 and MSC1213)
` 16-Bit PWM
` Power Management Control
` Internal Clock Divider
` Idle Mode Current < 200A
` Stop Mode Current < 100nA
` Programmable Brownout Reset
` Programmable Low-Voltage Detect
` 21 Interrupt Sources
` Two Hardware Breakpoints
GENERAL FEATURES
` Pin-Compatible with MSC1210
` Package: TQFP-64
` Low Power: 4mW
` Industrial Temperature Range:
−40°C to +125°C
` Power Supply: 2.7V to 5.25VApplication·Industrial Process Control
· Instrumentation
· Liquid/Gas Chromatography
· Blood Analysis
· Smart Transmitters
· Portable Instruments
· Weigh Scales
· Pressure Transducers
· Intelligent Sensors
· Portable Applications

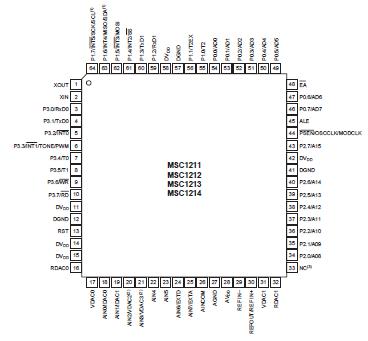

· DAS SystemsPinout
Specifications
| |
MSC1211/12/13/14 |
UNITS |
| Analog Inputs |
| Momentary |
100 |
mA |
| Continuous |
10 |
mA |
| Input voltage |
AGND − 0.3 to AVDD + 0.3 |
V |
| Power Supply |
|
|
| DVDD to DGND |
−0.3 to +6 |
V |
| AVDD to AGND |
−0.3 to +6 |
V |
| AGND to DGND |
−0.3 to +0.3 |
V |
| VREF to AGND |
−0.3 to AVDD + 0.3 |
V |
| Digital input voltage to DGND |
−0.3 to DVDD + 0.3 |
V |
| Digital output voltage to DGND |
−0.3 to DVDD + 0.3 |
V |
| Maximum junction temperature (TJ Max) |
+150 |
°C |
| Operating temperature range |
−40 to +125 |
°C |
| Storage temperature range |
−65 to +150 |
°C |
| Lead temperature (soldering, 10s) |
+235 |
°C |
| Thermal resistance |
Junction to ambient (JA) |
High K (2s 2p) |
48.9 |
°C/W |
| Low K (1s) |
72.9 |
°C/W |
| Junction to case (JC) |
12.2 |
°C/W |
| Package power dissipation |
(TJ Max − TAMBIENT)/JA |
W |
| Output current, all pins |
200 |
mA |
| Output pin short-circuit |
10 |
s |
| Digital Outputs |
| Output current |
Continuous |
100 |
mA |
| I/O source/sink current |
100 |
mA |
| Power pin maximum |
300 |
mA |
(1) Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to absolute maximum conditions for extended periods may affect device reliability.DescriptionThe MSC1211/MSC1212/13/14 are completely integrated families of mixed-signal devices incorporating a high-resolution delta-sigma () ADC, 16-bit DACs, 8-channel multiplexer, burnout detect current sources, selectable buffered input, offset DAC, Programmable Gain Amplifier (PGA), temperature sensor, voltage reference, 8-bit microcontroller, Flash Program Memory, Flash Data Memory, and Data SRAM, as shown in Figure 8.
MSC1212 On-chip peripherals include an additional 32-bit accumulator, an SPI-compatible serial port with FIFO, dual USARTs, multiple digital input/output ports, a watchdog timer, low-voltage detect, on-chip power-on reset, 16-bit PWM, breakpoints, brownout reset, three timer/counters, and a system clock divider. The MSC1211 and MSC1213 also contain a hardware I2C peripheral.
The devices MSC1212 accept low-level differential or single-ended signals directly from a transducer. The ADC provides 24 bits of resolution and 24 bits of no-missing-code performance using a Sinc3 filter with a programmable sample rate. The ADC also has a selectable filter that allows for high-resolution, single-cycle conversion.
The MSC1212 microcontroller core is 8051 instruction set compatible. The microcontroller core is an optimized 8051 core that executes up to three times faster than the standard 8051 core, given the same clock source. This design makes it possible to run the devices at a lower external clock frequency and achieve the same performance at lower power than the standard 8051 core.
The MSC1211/MSC1212/13/14 allow users to uniquely configure the Flash and SRAM memory maps to meet the needs of their applications. The Flash is programmable down to 2.7V using both serial and parallel programming methods. The Flash endurance is 100k Erase/Write cycles. In addition, 1280 bytes of RAM are incorporated on-chip.
The parts have separate analog and digital supplies, which can be independently powered from 2.7V to +5.5V. At +3V operation, the power dissipation for each part is typically less than 4mW. The MSC1211/MSC1212/13/14 are all available in a TQFP-64 package.
The MSC1211/MSC1212/13/14 are designed for high-resolution measurement applications in smart transmitters, industrial process control, weigh scales, chromatography, and portable instrumentation.
