MSC1212-01

Features: • Logic supply voltage (VCC) : 4.5 to 5.5 V• Driver supply voltage (VDISP) : 8 to 18 V• Operating temperature range : 40 to +105°C• Driver output current : IO2-1 = 6 mA (for only one driver on state)IO2-2 = 50 mA (total current for all drivers on state) IO2-3 = 0....

product image

MSC1212-01 Picture
See larger image
SeekIC No. : 004427831 Detail

MSC1212-01: Features: • Logic supply voltage (VCC) : 4.5 to 5.5 V• Driver supply voltage (VDISP) : 8 to 18 V• Operating temperature range : 40 to +105°C• Driver output current : IO2-1 = ...

MSC1212-01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSC1212-01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Logic supply voltage (VCC) : 4.5 to 5.5 V
• Driver supply voltage (VDISP) : 8 to 18 V
• Operating temperature range : 40 to +105°C
• Driver output current : IO2-1 = 6 mA (for only one driver on state)
                                       IO2-2 = 50 mA (total current for all drivers on state)
                                       IO2-3 = 0.2 mA
• Built-in 48-bit output Driver (with latch)
• Built-in 48-bit shift register
• Clock frequency :         0.5 MHz
• Package:
     64-pin plastic QFP (QFP64-P-1414-0.80-BK) (Product name: MSC1212-01GS-BK)

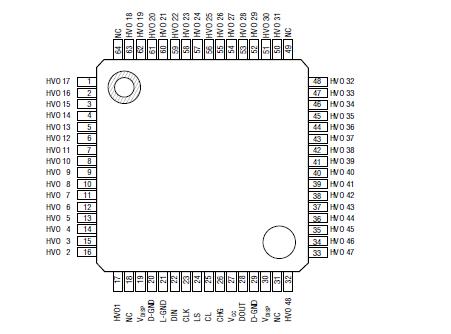

Pinout

Connection Diagram


Specifications

Parameter Symbol Condition Rating Unit
Logic Supply Voltage     *1 VCC - 0.3 to +6.5 V
Driver Supply Voltage    *1, *2 VDISP - 0.3 to +20 V
Input Voltage                  *1 VIN Applicable to all input pins 0.3 to VCC +0.3 V
Data Output Voltage       *1 VO1 Applicable to data output pin 0.3 to VCC +0.3 V
Driver Output Voltage     *1 VO2 Applicable to driver output pin 0.3 to VDISP +0.3 V
Power Dissipation PD Ta < 25°C 1.0 W
Thermal Resistance         *3 Rj-a - 120 °C/W
Storage Temperature TSTG - 55 to +150 °C
*1 Maximum supply voltage with respect to L-GND and D-GND
*2 Catastrophic breakdown may occur if the applied voltage is more than the rating.
*3 Thermal resistance of package (between junction and atmosphere)
          The junction temperature (Tj) given by the following formula should not exceed 150°C.
          Tj = P *Rj-a + Ta (P is the maximum power dissipation)


Description

The MSC1212-01 is a driver IC for VFD implemented in BiCMOS technology.

The circuit MSC1212-01 consists of a 48-bit shift register and a 48-bit latch; they control display data, which is output from the display drivers.

Since a 64-pin plastic QFP package is used for MSC1212-01, the display unit size can be reduced.
