MSC1208

Features: • Power supply voltage : VDD=8 to 18V (Built-in 5V-regulator for logic)• Operating temperature range : 40 to 85°C• Directly drives 23 segments : IOH=8.8mA, Max. at VOH=VDD0.8V• Built-in 4 ´ 4 switch matrix and key scan circuit for 2ch, 3-contact switching...

product image

MSC1208 Picture
See larger image
SeekIC No. : 004427826 Detail

MSC1208: Features: • Power supply voltage : VDD=8 to 18V (Built-in 5V-regulator for logic)• Operating temperature range : 40 to 85°C• Directly drives 23 segments : IOH=8.8mA, Max. at VOH=VD...

MSC1208 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSC1208
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Power supply voltage : VDD=8 to 18V (Built-in 5V-regulator for logic)
• Operating temperature range : 40 to 85°C
• Directly drives 23 segments : IOH=8.8mA, Max. at VOH=VDD0.8V
• Built-in 4 ´ 4 switch matrix and key scan circuit for 2ch, 3-contact switching
• Built-in digital dimming circuit with 10-bit resolution
• Data parity check function
• Self-check function (segment ON/OFF at intervals of about 1 second in test mode)
• Built-in RC oscillator (capacitor is connected externally)
• Built-in power-on reset circuit
• Package: 42-pin plastic shrink DIP (SDIP42-P-600-1.78) : (Product name : MSC1208SS) *** indicates the code number.


Pinout

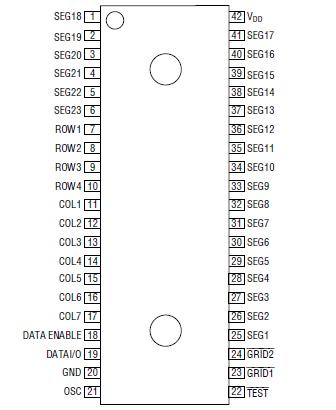

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Power Supply Voltage
VDD
-
0.3 to+20
V
Input Voltage
VIN
-
0.3 to+6
V
Storage Temperature
TSTG
-
55 to+150
°C
Power Dissipation
PD
Ta=85°C
400
mW



Description

The MSC1208 is a Bi-CMOS display driver for 1/2-duty vacuum fluorescent display tube. It consists of 58-bit shift registers, latch circuits, a 10-bit digital dimming circuit, 4×4 switch matrix, and a keyscan circuit for 2-channel, 3-contact rotary switch. With these features, the MSC1208 not only can display frequencies for audio systems used in automobile applications and various information, but also can accept keyboard entry. Thus the front panel functions can be carried out only by this IC.

Since the MSC1208 has the data parity check function and the self-check functions, inspection at shipment and failure detection can easily be performed.
In addition, since it uses serial interfacing, only two signal lines, DATA ENABLE and DATA I/O, are used for connection with a microcontroller.
