MSC1201-xx

Features:

• Single supply voltage : VDD = 8 V to 18 V (built-in 5 V logic regurator)
• Operating temperature range : Ta = 40°C to +85°C
• 30-segment driver outputs (I_OH = 6 mA at V_OH = V_DD 0.8 V)
• 2-grid pre-driver outputs (I_OH = 30 mA at V_OH = V_DD 0.8 V)
• Built-in digital dimming circuit (11-bit resolution)
• Built-in oscillation circuit (external R and C, f_OSC = 2.0 MHz)
• Built-in Power-On-Reset circuit.
• Lamp PWM signal Buil-in PWM conversion circuit for vacuum fluorescent display tube.
• Built-in RC Oscillation (external R and C)
• Correspondence between shift register and output segment is settable optionally using built in mask programmable 30 *30 PLA.
• Package : 44-pin plastic QFP (QFP44P910-0.802K)(Product name: MSC1201-xxGS-2K) xx indicates the code number

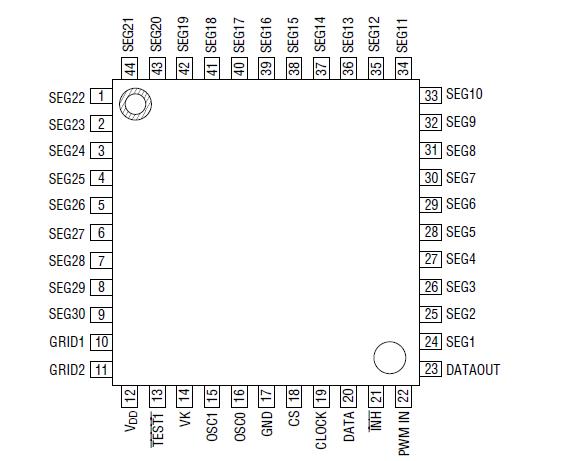

Pinout




Specifications

Parameter	Symbol	Condition	Rating	Unit
Supply Voltage	VDD	-	0.3 to +20	V
Input Voltage	VIN	All inputs	0.3 to +6	V
Storage Temperature Range	TSTG	-	65 to +150	°C
Power Dissipation	PD	Ta = 85°C	0.4	W

Description

The MSC1201-xx is a 1/2 duty vacuum fluorescent display tube driver implemented in Bi-CMOS technology. This LSI consists of 64-bit shift registers, 64 latches, PWM conversion circuit, a digital dimming circuit, 30-segment driver and 2-grid driver. As the MSC1201-xx has both a digital dimming circuit and a PWM conversion circuit which converts PWM signal for lamp dimming control to PWM signal for VFD tube dimming control, the dimming control can be realized without any external circuit.

The MSC1201-xx interface with a MCU can be done only with 3 wires (CS, DATA and CLOCK signals). Also, DATA and CLOCK signal lines can be shared with other peripherals because of chip select function by CS signal.
