MSC1200V-xx

• Power supply voltage : 8V to 18V (built-in 5V regulator for logic)
• Operating temperature range : 40°C to +85°C
• 30-segment driver outputs (IOH = 6mA at VOH = VDD 0.8V)
• Built-in analog dimming circuit (PWM: 12.5% Max at 6-bit resolution)
• Built-in digital dimming circuit (11-bit resolution)
• Built-in 5 x 6 keyscan circuit
• Built-in RC oscillation circuit (external R and C)
• Built-in power-on-reset circuit.
• Shift register outputs and segment outputs can be set arbitrary.
  - (32 x 32-bit PLA that is programmable by mask option is built in)
• The product name differs depending on the bonding option pin selected:
  - PWM OUT/BLANK IN : MSC1200-xx
  - DATA OUT : MSC1200V-xx

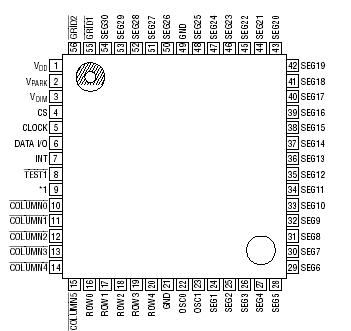

• Package :
  - 56-pin plastic QFP (QFP56P910-0.652K) (Product name: MSC1200-xxGS-2K/MSC1200V-xxGS-2K) xx indicates the code number.

The MSC1200-xx/MSC1200V-xx is a Bi-CMOS display driver for 1/2-duty vacuum fluorescent display tube. This device consists of a 64-bit shift register, latches, an analog dimming circuit, a digital dimming circuit, a keyscan circuit, and drivers.

The MSC1200V-xx interface with a microcomputer can be done only with four signal lines (CS, DATA I/O, CLOCK, and INT). Also, the DATA I/O and CLOCK signal lines can be shared with other peripherals by using the chip select function.

Also available is the MSC1200-01/1200V-01, a model with the general purpose code "-01".

Products MSC1200V-xx with custom code are manufactured according to customer orders.
