MSC1163

Features: The MSC1163 is designed as a VFD anode driver with emitter-follower output providing 40-bit active pull-down and built-in 40-bit bidirectional shift register and latch.• Logic Supply Voltage (VCC) : 5V• Driver Supply Voltage (VHV) : 65V• Driver Output Current IOHVH : 2m...

product image

MSC1163 Picture
See larger image
SeekIC No. : 004427815 Detail

MSC1163: Features: The MSC1163 is designed as a VFD anode driver with emitter-follower output providing 40-bit active pull-down and built-in 40-bit bidirectional shift register and latch.• Logic Supply...

MSC1163 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSC1163
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

The MSC1163 is designed as a VFD anode driver with emitter-follower output providing 40-bit active pull-down and built-in 40-bit bidirectional shift register and latch.
• Logic Supply Voltage (VCC) : 5V
• Driver Supply Voltage (VHV) : 65V
• Driver Output Current
   IOHVH : 2mA
   IOHVL : 2mA
• Built-in 40-bit output with latch
• Built-in 40-bit bidirectional shift register
• Clock frequency: 4MHz
• Package:
   60-pin plastic SSOP (SSOP60-P-700-0.65-BK) (Product name: MSC1163GS-BK)


Pinout

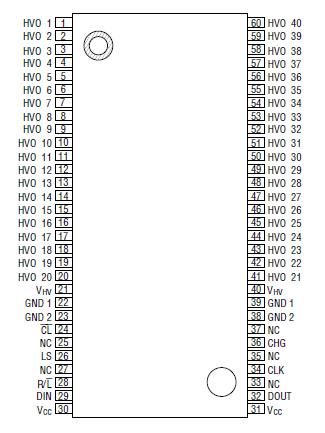

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Note
Logic Supply Voltage
VCC
Applicable to logic supply voltage pin
0.3 to +6.5
V
1
Driver Supply Voltage
VHV
Applicable to driver supply voltage pin
VCC to 70
V
1, 2
Input Voltage
VIN
Applicable to all input pins
0.3 to VCC +0.3
V
1
Data Output Voltage
VOD
Applicable to data output pin
0.3 to VCC +0.3
V
1
Driver Driving Frequency
fDRV
Duty cycle 50% max
0 to 15
kHz
-
Power Dissipation
PD
Ta 25°C
860
mW
-
Package Thermal Resistance
Rj-a
-
145
°C/W
3
Storage Temperature
TSTG
-
55 to +150
°C
-



Description

The MSC1163 is a monolithic IC using the Bi-CMOS process for hybridizing CMOS and bipolar transistors on the same chip. The logic portion such as the input stage, shift register and latch is fabricated by CMOS and the output driver requiring a high withstand voltage is fabricated by bipolar transistors.

Since the 60-pin plastic SSOP package is adopted and the pin configuration allows the circuit MSC1163 wiring to be formed on the single side PCB, the display unit size can be reduced.

The MSC1163 shift register has a bidirectional configuration; therefore, it is easy to design the circuit wiring in which devices are arranged so that they are symmetric with respect to the display.
