MSA180

Features: • Power supply voltage : 2.0 V to 6.0 V (single supply voltage)• Low current consumption : 4.2 mA typ (VCC=3 V, no load)• Standby current : <1 A• Differential output : Twice the supply voltage (maximum output amplitube)• Package options :8-pin plastic DIP...

product image

MSA180 Picture
See larger image
SeekIC No. : 004427505 Detail

MSA180: Features: • Power supply voltage : 2.0 V to 6.0 V (single supply voltage)• Low current consumption : 4.2 mA typ (VCC=3 V, no load)• Standby current : <1 A• Differential ou...

MSA180 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MSA180
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Power supply voltage : 2.0 V to 6.0 V (single supply voltage)
• Low current consumption : 4.2 mA typ (VCC=3 V, no load)
• Standby current : <1 A
• Differential output : Twice the supply voltage (maximum output amplitube)
• Package options :
8-pin plastic DIP (DIP8-P-300-2.54) (Product name: MSA180RS)
8-pin plastic SOP (SOP8-P-250-1.27-K) (Product name: MSA180MS-K) Chip


Pinout

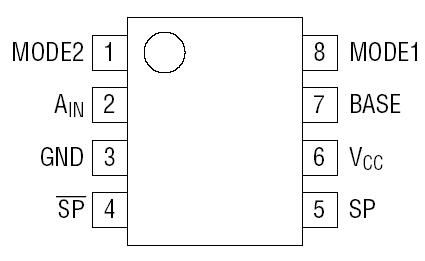

Connection Diagram


Specifications

Parameter Symbol Condition Rating Unit Remarks
Power Supply Voltage VCC - 0.3 to +6.5 V -
Input Voltage VIN - 0.3 to VCC+0.3 V AIN
MODE1
MODE2
BASE
Maximum Output Current IOMAX VCC=3 V ±80 mA SP, SP
Power Dissipation PD Ta=25°C 400 mW DIP type
340 mW SOP type
Junction Temperature TjMAX - 110 °C Chip
Storage Temperature TSTG - 55 to +150 °C -



Description

The MSA180 is a piezo speaker driver for OKI's speech synthesizers. Its voltage gain can be adjusted by a factor of up to 10. The differential output provides an amplitude of twice the voltage supply.

In MSA180,A separate output connects to the base of an external transistor for controlling system voltage.

A standby function of MSA180 eliminates power loss when no input signal is present.
