MS6323

Features: ·Operation range: 2.7V~5.5V·Excellent Power Supply Rejection Ratio(PSRR)·Low operating current·Low power consumption 8mW at VDD=3.3V (Full scale output )·Low distortion·No zero crossing distortion·Wide dynamic range(16-bit resolution)·Voltage Output·Fast setting time permits 2*, 4*, and ...

product image

MS6323 Picture
See larger image
SeekIC No. : 004427414 Detail

MS6323: Features: ·Operation range: 2.7V~5.5V·Excellent Power Supply Rejection Ratio(PSRR)·Low operating current·Low power consumption 8mW at VDD=3.3V (Full scale output )·Low distortion·No zero crossing di...

MS6323 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MS6323
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Operation range: 2.7V~5.5V
·Excellent Power Supply Rejection Ratio(PSRR)
·Low operating current
·Low power consumption 8mW at VDD=3.3V (Full scale output )
·Low distortion
·No zero crossing distortion
·Wide dynamic range(16-bit resolution)
·Voltage Output
·Fast setting time permits 2*, 4*, and 8* oversampling (serial input) or double speed operation at 4*oversampling
·Compatible with most of the Japanese input formats; time multiplexed, two's complement, CMOS input level
·Output voltage swing is proportional to supply voltage(VOPP=VDD/2)
·Cost efficient
·Space saving package SOP8, MSOP8


Application

·Multimedia system
·MP3, PDA, Portable Digital Audio.

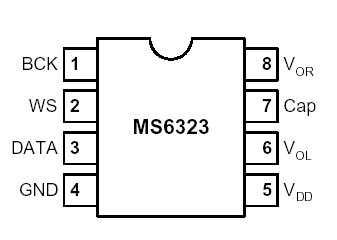

Pinout

Connection Diagram


Specifications

Symbol Parameter Rating Unit
VDD Positive Supply Voltage 6 V
VESD Electrostatic Handling -2000 to 2000 V
TSTG Storage Temperature Range -65 to 150
TA Operating Ambient Temperature Range -40 to 85
TJ Maximum Junction Temperature 150
TS Soldering Temperature, 10 seconds 260
RTHJA Thermal Resistance from Junction to Ambient in Free Air
SOP8
MSOP8		 210
235		 /W



Description

The MS6323 is a 16-bit voltage-output Digital-to-Analog Converter(DAC). It gives the excellent Power Supply Rejection Ratio(PSRR). It features extremely low power dissipation, small package size and easy application. The accuracy of the weight current sources, combined with the unique symmetrical decoding method, preclude zero-crossing distortion and ensures high quality audio reproduction. These unique features, combined with its exceptional performance, make the MS6323 ideally suited for use in portable audio equipment. It is pin and function compatible with MS6313.
