MS6310

Features: • Voltage Output• Space saving package (SOP8)• Low power consumption• Low total harmonic distortion• Wide dynamic range(16-bit resolution)• No zero crossing distortion• Wide operating temperature range(-40 to 85)• Internal bias current ensu...

product image

MS6310 Picture
See larger image
SeekIC No. : 004427412 Detail

MS6310: Features: • Voltage Output• Space saving package (SOP8)• Low power consumption• Low total harmonic distortion• Wide dynamic range(16-bit resolution)• No zero cros...

MS6310 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MS6310
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Voltage Output
• Space saving package (SOP8)
• Low power consumption
• Low total harmonic distortion
• Wide dynamic range(16-bit resolution)
• No zero crossing distortion
• Wide operating temperature range(-40 to 85)
• Internal bias current ensures maximum dynamic range
• Fast setting time permits 2*, 4*, and 8* oversampling(serial input) or double speed operation at 4* oversampling
• Compatible with most of the Japanese input formats; time multiplexed, two's complement, TTL
• The full scale output voltage can be mask optioned
• Cost efficient


Application

VCD Player, DVD Player, CD-ROM, DVD-ROM, CD-RW, DVD-RW, Motherboard.

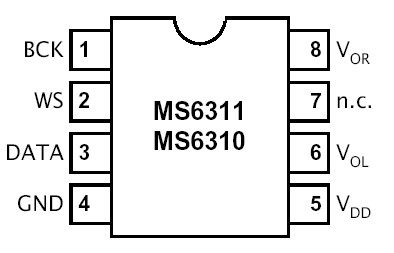

Pinout

Connection Diagram


Specifications

Symbol Parameter Min Max Unit
VDD Positive Supply Voltage - 6 V
Tsig Storage Temperature Range -55 +150
TXTAL Maximum Crystal Temperature - +150
TAMB Operating Ambient Temperature Range -40 +85
Ves Electrostatic Handling -2000 2000 V



Description

The MS6310 is a 16-bit voltage-output Digital-to-Analog Converter(DAC). The MS6311 is fabricated in a 0.8µm CMOS process and features extremely low power dissipation, small package size and easy application. The accuracy of the matched coarse current sources, combined with the unique symmetrical decoding method, preclude zero-crossing distortion and ensures high quality audio reproduction. These unique features, combined with its exceptional performance, make the MS6311 ideally suited for use in digital audio equipment. MS6311 is pin and function compatible with the Philips, TDA1311. MS6310 is a low cost solution.
