MR53V8052J

Features: ` 524,288 word x 16bit / 1,048,576 word x 8bit electrically switchable configuration` 8word x 16-Bit or 16word x 8-bit / Page read mode` Single +2.7V~3.6V power supply` Normal access time 100ns` Page access time 30ns` VCC power supply current 80mA` VCC standby current 10A` Input / Output...

product image

MR53V8052J Picture
See larger image
SeekIC No. : 004426677 Detail

MR53V8052J: Features: ` 524,288 word x 16bit / 1,048,576 word x 8bit electrically switchable configuration` 8word x 16-Bit or 16word x 8-bit / Page read mode` Single +2.7V~3.6V power supply` Normal access time ...

MR53V8052J Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MR53V8052J
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 524,288 word x 16bit / 1,048,576 word x 8bit electrically switchable configuration
` 8word x 16-Bit or 16word x 8-bit / Page read mode
` Single +2.7V~3.6V power supply
` Normal access time 100ns
` Page access time  30ns
` VCC power supply current  80mA
` VCC standby current  10A
` Input / Output TTL compatible
` Three-state output
` Packages
   - 42-pin plastic DIP  (DIP42-P-600-2.54)  MR53V8052J-XXRA
   - 44-pin plastic SOP  (SOP44-P-600-1.27-K)  MR53V8052J-XXMA
   - 44-pin plastic TSOP (TSOPII44-P-400-0.80-K)  MR53V8052J-XXTP


Pinout

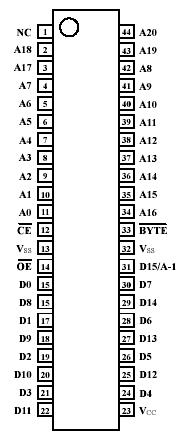

Connection Diagram


Specifications

Parameter Symbol Condition Value Unit
Operating temperature under bias Topr - 0 to 70 °C
Storage temperature Tstg - -55 to 125 °C
Input voltage VI relative to VSS -0.5 to VCC+ 0.5 V
Output voltage VO -0.5 to VCC+ 0.5 V
Power supply voltage VCC -0.5 to 5 V
Power dissipation per package PD - 1.0 W



Description

The MR53V8052J is a 8Mbit Read-Only Memory whose configuration can be electrically switched between 524,288 word x 16bit and 1,048,576 word x 8bit. The MR53V8052J operates asynchronously, external  clocks  are  not  required,  making  this  device  easy-to-use.  The  MR53V8052J  is  suitable  as large-capacity fixed memory for microcomputers and data terminals. It is manufactured using a CMOS silicon gate technology and is offered in 42-pin DIP, 44-pin SOP or 44-pin TSOP packages.
