Product Details

Description

Features:

· 2,097,152 word x 16bit / 4,194,304 word x 8bit electrically switchable configuration
· Single +4.5V~5.5V power supply
· Access time 100ns
· VCC power supply current 65mA
· VCC standby current 50mA
· Input / Output TTL compatible
· Three-state output
· Packages
- 44-pin plastic SOP (SOP44-P-600-1.27-K) MR533202J-XXMA
- 44-pin plastic TSOP (TSOPII44-P-400-0.80-K) MR533202J-XXTP

Pinout

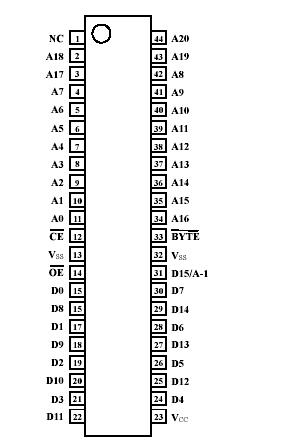

Connection Diagram

Specifications

Parameter	Symbol	Condition	Value	Unit
Operating temperature under bias	T_opr	-	0 to 70	°C
Storage temperature	T_stg	-	-55 to 125	°C
Input voltage	V_I	relative to V_SS	-0.5 to V_CC+ 0.5	V
Output voltage	V_O		-0.5 to V_CC+ 0.5	V
Power supply voltage	V_CC		-0.5 to 7	V
Power dissipation per package	P_D	-	1.0	W

Description

The MR533202J is a 32Mbit Read-Only Memory whose configuration can be electrically switched between 2,097,152 word x 16bit and 4,194,304 word x 8bit. The MR533202J operates asynchronously, external clocks are not required, making this device easy-to-use. The MR533202J is suitable as large- capacity fixed memory for microcomputers and data terminals. It is manufactured using a CMOS silicon gate technology and is offered in 44-pin SOP or 44-pin TSOP packages.
