Product Details

Description

Features:

· 524,288 word x 16bit / 1,048,576 word x 8bit electrically switchable configuration
· Single +2.7V~3.6V power supply
· Access time 100ns
· VCC Power supply current 40mA
· VCC Standby current 10mA
· Input / Output TTL compatible
· Three-state output
· Packages
    42-pin plastic DIP (DIP42-P-600-2.54) MR53V8002J-XXRA
   44-pin plastic SOP (SOP44-P-600-1.27-K) MR53V8002J-XXMA
   44-pin plastic TSOP (TSOPII44-P-400-0.80-K) MR53V8002J-XXTP

Pinout

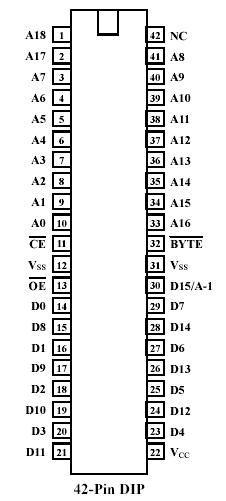

Connection Diagram

Specifications

Parameter	Symbo	Condition	Value	Unit
Operating temperature under bias	T_OPR	-	0 ~ 70
Storage temperature	T_STG	-	-55 ~ 125
Input voltage	V_I	Relative to VSS	-0.5 ~ V_CC+0.5	V
Output voltage	V_O		-0.5 ~ V_CC+0.5	V
Power supply voltage	V_CC		-0.5 ~ 5	V
Power dissipation per package	P_D	-	1.0	W

Description

The MR53V8002J is a 8Mbit Read-Only Memory whose configuration can be electrically switched between 524,288 word x 16bit and 1,048,576 word x 8bit. The MR53V8002J operates asynchronously, external clocks are not required, making this device easy-to-use. The MR53V8002J is suitable as large-capacity fixed memory for microcomputers and data terminals. It is manufactured using a CMOS silicon gate technology and is offered in 42-pin DIP, 44-pin SOP or 44-pin TSOP packages.
