MR53V3203J

Features: · 2,097,152 word x 16bit configuration· Single +2.7V~3.6V power supply· Access time - 100ns (@Vcc=3.0V~3.6V) - 120ns (@Vcc=2.7V~3.3V)· VCC power supply current - 40mA (@Vcc=3.0V~3.6V) - 30mA (@Vcc=2.7V~3.3V)· VCC standby current 10mA· Input / Output TTL compatible· Three-state output· ...

product image

MR53V3203J Picture
See larger image
SeekIC No. : 004426674 Detail

MR53V3203J: Features: · 2,097,152 word x 16bit configuration· Single +2.7V~3.6V power supply· Access time - 100ns (@Vcc=3.0V~3.6V) - 120ns (@Vcc=2.7V~3.3V)· VCC power supply current - 40mA (@Vcc=3.0V~3.6V) - ...

MR53V3203J Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MR53V3203J
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 2,097,152 word x 16bit configuration
· Single +2.7V~3.6V power supply
· Access time
   - 100ns (@Vcc=3.0V~3.6V)
   - 120ns (@Vcc=2.7V~3.3V)
· VCC power supply current
   - 40mA (@Vcc=3.0V~3.6V)
   - 30mA (@Vcc=2.7V~3.3V)
· VCC standby current  10mA
· Input / Output TTL compatible
· Three-state output
· Packages
   - 42-pin plastic DIP  (DIP42-P-600-2.54)  MR53V3203J-XXRA


Pinout

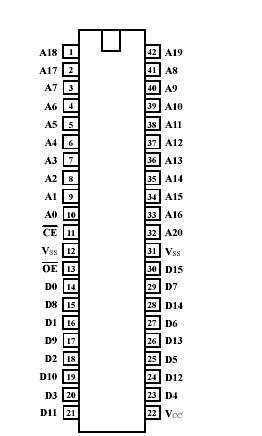

Connection Diagram


Specifications

Parameter Symbol Condition Value Unit
Operating temperature under bias Topr - 0 to 70 °C
Storage temperature Tstg - -55 to 125 °C
Input voltage VI relative to VSS -0.5 to VCC+ 0.5 V
Output voltage VO -0.5 to VCC+ 0.5 V
Power supply voltage VCC -0.5 to 5 V
Power dissipation per package PD - 1.0 W



Description

The MR53V3203J is a 32Mbit Read-Only Memory whose  configuration  can  is  2,097,152 word x 16bit.  The  MR53V3203J  operates  asynchronously,  external  clocks  are  not  required,  making  this device easy-to-use. The MR53V3203J is suitable as large-capacity fixed memory for microcomputers and data terminals. It is manufactured using a CMOS silicon gate technology and is offered in 42-pin DIP
