MR53V3202J

Features: ` 2,097,152 word x 16bit / 4,194,304 word x 8bit electrically switchable configuration` Single +2.7V~3.6V power supply` Access time - 100ns (@Vcc=3.0V~3.6V) - 120ns (@Vcc=2.7V~3.3V)` VCC power supply current - 40mA (@Vcc=3.0V~3.6V) - 30mA (@Vcc=2.7V~3.3V)` VCC standby current 10A` Inpu...

product image

MR53V3202J Picture
See larger image
SeekIC No. : 004426673 Detail

MR53V3202J: Features: ` 2,097,152 word x 16bit / 4,194,304 word x 8bit electrically switchable configuration` Single +2.7V~3.6V power supply` Access time - 100ns (@Vcc=3.0V~3.6V) - 120ns (@Vcc=2.7V~3.3V)` VCC ...

MR53V3202J Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MR53V3202J
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 2,097,152 word x 16bit / 4,194,304 word x 8bit electrically switchable configuration
` Single +2.7V~3.6V power supply
` Access time
   - 100ns (@Vcc=3.0V~3.6V)
   - 120ns (@Vcc=2.7V~3.3V)
` VCC power supply current
   - 40mA (@Vcc=3.0V~3.6V)
   - 30mA (@Vcc=2.7V~3.3V)
` VCC standby current  10A
` Input / Output TTL compatible
` Three-state output
` Packages
   - 44-pin plastic SOP  (SOP44-P-600-1.27-K) MR53V3202J-XXMA
   - 44-pin plastic TSOP (TSOPII44-P-400-0.80-K) MR53V3202J-XXTP


Pinout

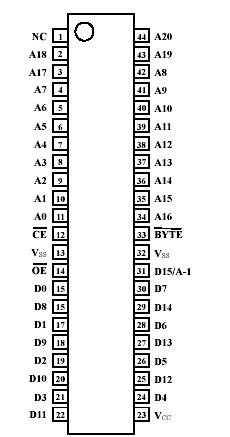

Connection Diagram


Specifications

Parameter Symbol Condition Value Unit
Operating temperature under bias Topr - 0 to 70 °C
Storage temperature Tstg - -55 to 125 °C
Input voltage VI relative to VSS -0.5 to VCC+ 0.5 V
Output voltage VO -0.5 to VCC+ 0.5 V
Power supply voltage VCC -0.5 to 5 V
Power dissipation per package PD - 1.0 W



Description

The MR53V3202J is a 32Mbit Read-Only Memory whose configuration can be electrically switched between  2,097,152  word  x  16bit  and  4,194,304  word  x  8bit.  The  MR53V3202J  operates asynchronously, external clocks are not required, making this device easy-to-use. The MR53V3202J is suitable  as  large-capacity  fixed memory  for  microcomputers  and  data  terminals.  It  is manufactured using a CMOS silicon gate technology and is offered in 44-pin SOP or 44-pin TSOP packages.
