MR53V1602J

Features: · 1,048,576 word x 16bit / 2,097,152 word x 8bit electrically switchable configuration· Single +2.7V~3.6V power supply· Access time 100ns· VCC Power supply current 40mA· VCC Standby current 10mA· Input / Output TTL compatible· Three-state output· Packages - 42-pin plastic DIP (DIP42-P-60...

product image

MR53V1602J Picture
See larger image
SeekIC No. : 004426671 Detail

MR53V1602J: Features: · 1,048,576 word x 16bit / 2,097,152 word x 8bit electrically switchable configuration· Single +2.7V~3.6V power supply· Access time 100ns· VCC Power supply current 40mA· VCC Standby curren...

MR53V1602J Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MR53V1602J
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 1,048,576 word x 16bit / 2,097,152 word x 8bit electrically switchable configuration
· Single +2.7V~3.6V power supply
· Access time 100ns
· VCC Power supply current 40mA
· VCC Standby current 10mA
· Input / Output TTL compatible
· Three-state output
· Packages
  - 42-pin plastic DIP  (DIP42-P-600-2.54) MR53V1602J-XXRA
  - 44-pin plastic SOP  (SOP44-P-600-1.27-K) MR53V1602J-XXMA
  - 44-pin plastic TSOP (TSOPII44-P-400-0.80-K) MR53V1602J-XXTP


Pinout

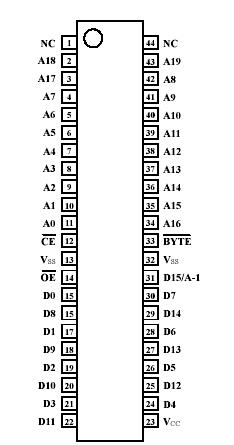

Connection Diagram


Specifications

Parameter Symbol Condition Value Unit
Operating temperature under bias Topr - 0 to 70 °C
Storage temperature Tstg - -55 to 125 °C
Input voltage VI relative to VSS -0.5 to VCC+ 0.5 V
Output voltage VO -0.5 to VCC+ 0.5 V
Power supply voltage VCC -0.5 to 5 V
Power dissipation per package PD - 1.0 W



Description

The MR53V1602J is a 16Mbit Read-Only Memory whose configuration can be electrically switched between  1,048,576  word  x  16bit  and  2,097,152  word  x  8bit.  The  MR53V1602J  operates asynchronously, external clocks are not required, making this device easy-to-use. The MR53V1602J is suitable  as  large-capacity  fixed memory  for  microcomputers  and  data  terminals.  It  is manufactured using a CMOS  silicon gate  technology and  is offered in  42-pin DIP,  44-pin SOP  or 44-pin  TSOP packages.
