Product Details

Description

Features:

• 1.5% Maximum Error over 0° to 85°C
• Ideally suited for Microprocessor or MicrocontrollerBased Systems
• Patented Silicon Shear Stress Strain Gauge
• Available in Absolute, Differential and Gauge Configurations
• Durable Epoxy Unibody Element
• EasytoUse Chip Carrier Option

Application

• Altimeter
• Barometer

Pinout

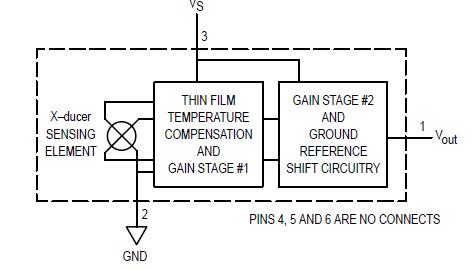

Connection Diagram

Specifications

Parametrics	Symbol	Value	Unit
Overpressure⁽²⁾ (P1 > P2)	P_max	400	kPa
Burst Pressure⁽²⁾ (P1 > P2)	P_burst	1000	kPa
Storage Temperature	T_stg	40° to +125°	°C
Operating Temperature	T_A	40° to +125°	°C

1. TC = 25°C unless otherwise noted.
2. Exposure beyond the specified limits may cause permanent damage or degradation to the device.

Description

The MPX4115 series is designed to sense absolute air pressure in an altimeter or barometer (BAP) applications. Motorola's BAP sensor integrates onchip, bipolar op amp circuitry and thin film resistor networks to provide a high level analog output signal and temperature compensation. The small form factor and high reliability of onchip integration makes the Motorola BAP sensor a logical and economical choice for application designers.
