Product Details

Description



Features:

·Compression methods MH, MR, and MMR
·Operating mode: Page mode
·Bus configuration: Choice of dual- or single-bus operation
·Decoding error processing:
·Choice of replacing with the previous line or a white line
·Image bus configuration: 8 bits, maximum 16 megabytes address space of image bus, 2-channel master DMA
·System bus configuration: X80 interface compatible, 8 bits, 2-channel slave DMA
·Pixels per line: maximum 64K, in byte increments
·Concurrent DMA transfers over image bus and command processing
·Support for pointer management for image buffer
·Wide selection of independent parameters for coding, decoding, transfers between buses, and DMA transfersr
·Support for time-shared processing by line for both coding and decoding


Application

Facsimile equipment


Pinout

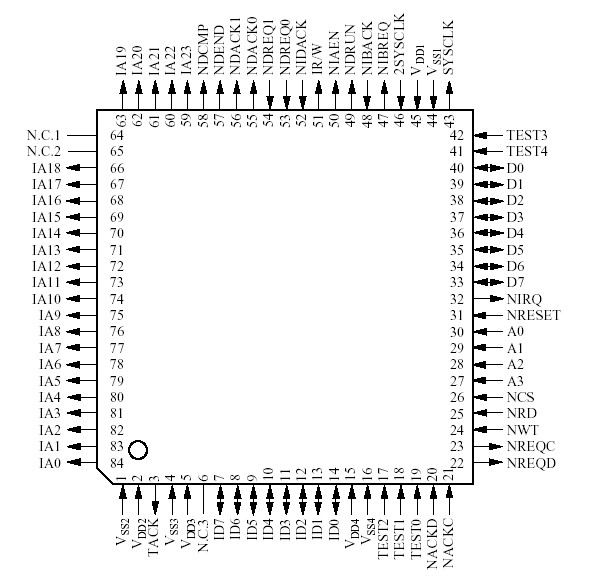

Connection Diagram


Description

The MN86062 is a high-speed LSI codec for compressing and decompressing images using the MH, MR, and MMR standard compression methods specified in the ITU-T T.4 and T.6 recommendation. Registers and other settings of MN86062 provide flexible support for a variety of processing.
