Description



Features:

·Direct interface to high voltage display
·Serial data input
·No external resistors required
·Wide display power supply operation
·LSTTL compatible inputs
·Software compatible with NS display driver family
·Compatible with alphanumeric or dot matrix displays
·Display blanking control input
·Simple to cascade


Application

·COPS™ or microprocessor-driven displays
·Instrumentation readouts
·Industrial control indicator
·Digital clock, thermostat, counter, voltmeter
·Word processor text displays
·Automotive dashboards


Pinout

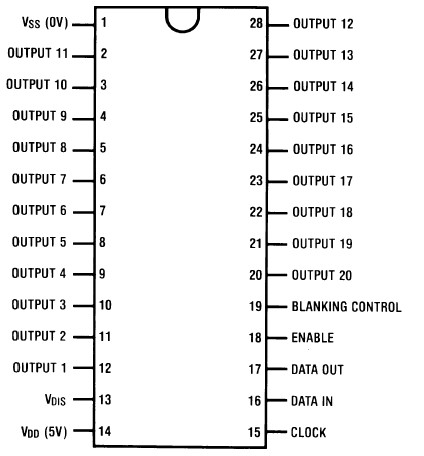

Connection Diagram


Specifications

Voltage at Any Input Pin                        VDD + 0.3V to
                                                                    VSS −0.3V
Voltage at Any Display Pin            VDD to VDD −36.5V
VDD + |VDIS|                                                      36.5V
Storage Temperature                    −65°C to +150°C
Power Dissipation at 25°C
Molded DIP Package, Board Mount      2.03W (Note 2)
Molded DIP Package, Socket Mount     1.83W (Note 3)
Junction Temperature                                       130°C
Lead Temperature (Soldering, 10 sec.)             260°C


Description

The MM58342 is a monolithic MOS integrated circuit utilizing CMOS metal gate low threshold P- and N-channel devices. It is available both in 28-pin molded dual-in-line packages or as dice. The MM58342 is particularly suited for driving high voltage (35V max) vacuum fluorescent (VF) displays (e.g., a 20-digit alphanumeric or dot matrix display).
