Product Details

Description



Features:

·Direct interface to high voltage display
·Serial data input
·No external resistors required
·Wide display power supply operation
·LSTTL compatible inputs
·Software compatible with NS display driver family
·Compatible with alphanumeric or dot matrix displays
·Display blanking control input
·Simple to cascade


Application

·COPSTM or microprocessor-driven displays
·Instrumentation readouts
·Industrial control indicator
·Digital clock, thermostat, counter, voltmeter
·Word processor text displays
·Automotive dashboards


Pinout

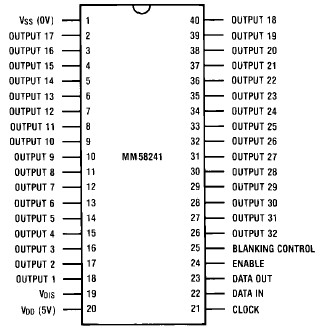

Connection Diagram


Specifications

Voltage at Any Input Pin                    VDD + 0.3V to VSS - 0.3V
Voltage at Any Display Pin                          VDD to VDD - 62.5V
VDD a lVDISl                                                                     62.5V
Storage Temperature                                     - 65 to + 150
Power Dissipation at a25
Molded DIP Package, Board Mount                                2.28W*
Molded DIP Package, Socket Mount                             2.05W**
Junction Temperature                                                       130
Lead Temperature
(Soldering, 10 sec.)                                                           260
*Molded DIP Package, Board Mount, JA e 46/W,
Derate 21.7 mW/ above a25.
**Molded DIP Package, Socket Mount, JA e 51/W,
Derate 19.6 mW/ above a25.


Description

The MM58241 is a monolithic MOS integrated circuit utilizing CMOS metal gate low threshold P- and N-channel devices. It is available both in 40-pin molded dual-in-line packages or as dice. The MM58241 is particularly suited for driving high voltage (60V max) vacuum fluorescent (VF) displays (e.g., a 32-digit alphanumeric or dot matrix display).
