ML9211

• Logic supply voltage (VDD) : 4.5 to 5.5V
• Driver supply voltage (VDISP) : 8 to 18V
• Duplex/Triplex (1/2 duty / 1/3 duty) selectable
   DUP/TRI=1/2 duty selectable at "H" level
   DUP/TRI=1/3 duty selectable at "L" level
• Number of display segments
   Max. 112-segment display (during 1/2 duty mode)
   Max. 168-segment display (during 1/3 duty mode)
• Master/Slave selectable
   M/S=Master mode selectable at "H" level
   M/S=Slave mode selectable at "L" level
• Interface with a microcontroller
   Three lines: CS, CLOCK, and DATA IN
• 56-segment driver outputs : IOH=5mA at VOH=VDISP0.8V (SEG1 to 37)
   (can be directly connected to VFD tube : IOH=10mA at VOH=VDISP0.8V (SEG38 to 56)
   and require no external resistors) : IOL=500mA at VOL=2V (SEG1 to 56)
• 3-grid pre-driver outputs : IOH=5.0mA at VOH=VDISP0.8V
   (require external drivers) IOL=10mA at VOL=2V
• Logic outputs : IOH=200mA at VOH=VDD0.8V
   IOL=200mA at VOL=0.8V
• Built-in digital dimming circuit (10-bit resolution)
• Built-in oscillation circuit (external R and C)
• Built-in Power-On-Reset circuit

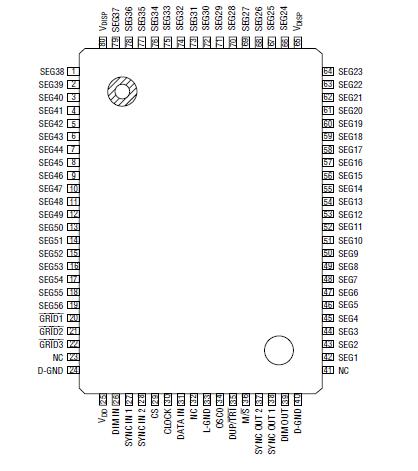

• Package options:
   80-pin plastic QFP (QFP80-P-1420-0.80-BK) Product name: ML9211GA
   80-pin plastic QFP (QFP80-P-1414-0.65-K) Product name: ML9211GP

The ML9211 is a full CMOS controller/driver for Duplex or Triplex (1/2 duty or 1/3 duty) vacuum fluorescent display tube. It consists of a 56-segment driver multiplexed to drive up to 168 segments, and 10-bit digital dimming circuit.

ML9211 features a selection of a master mode and a slave mode, and therefore it can be used to expand segments for the VFD driver with keyscan and A/D converter function.

ML9211 provides an interface with a microcontroller only by three signal lines: DATA IN, CLOCK and CS.
