ML9205-xx

• Logic power supply (VDD) : 3.3 V±10% or 5.0 V±10%
• Fluorescent display tube drive power supply (VDISP) : 3.3 V±10% or 5.0 V±10%
• Fluorescent display tube drive power supply (VFL) : 20 to 60 V
• VFD driver output current
  - (VFD driver output can be connected directly to the fluorescent display tube. No pull-down resistor is required.)
  - Segment driver (SEG1 to SEG35) : 5.0 mA (VFL= 60 V)
  - Segment driver (AD1 to AD4) : 10.0 mA (VFL= 60 V)
  - Grid driver (COM1 to COM24) : 50.0 mA (VFL= 60 V)
• General output port output current
  - Output driver (P1 to P4) : ±1.0 mA (VDD = 3.3 V±10%) ±2.0 mA (VDD = 5.0 V±10%)
• Content of display
  - CGROM 5 * 7 dots : 240 types (character data)
  - CGRAM 5 * 7 dots : 16 types (character data)
  - ADRAM 24 (display digit) * 4 bits(symbol data)
  - DCRAM 24 (display digit) * 8 bits (register for character data display)
  - General output port 4 bits (static operation)
• Display control function
  - Display digit : 9 to 24 digits
  - Display duty (brightness adjustment) : 8 stages
  - All lights ON/OFF
• 3 interfaces with microcontroller : DA, CS, CP (4 interfaces when RESET is added)
• 1-byte instruction execution (excluding data write to RAM)
• Built-in oscillation circuit (external R and C)
• Package options:

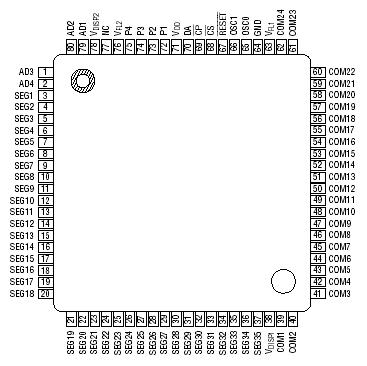

  -80-pin QFP package (QFP80-P-1414-0.65-K) (Product name : ML9205-xxGP)
  -80-pin QFP package (QFP80-P-1420-0.80-BK)(Product name : ML9205-xxGA)
  -xx indicates the code number.

*1: Use the same power supply for V_DD and V_DISP.

The ML9205-xx is a dot matrix vacuum fluorescent display tube controller driver IC which displays characters, numerics and symbols.

Dot matrix vacuum fluorescent display tube of ML9205-xx drive signals are generated by serial data sent from a micro-controller. A display system is easily realized by internal ROM and RAM for character display.

The ML9205-xx has low power consumption since it is made by CMOS process technology. -01 is available as a general-purpose code.

Custom codes are provided on customer's request.
