ML9206-xx

Features:

• Logic power supply and vacuum fluorescent display tube drive power supply (VDD) : 3.3 V±10% or 5.0 V±10%
• Fluorescent display tube drive power supply (VFL) : 20 to 60 V
• VFD driver output current (VFD driver output can be connected directly to the fluorescent display tube. No pull-down resistor is required.) - Segment driver (SEG1 to SEG35) : 6 mA (VFL=60V) - Segment driver (AD1 and AD2) : 15 mA (VFL=60V) - Grid driver (COM1 to COM16) : 30 mA (VFL=60V)
• General output port output current - Output driver (P1 and P2) : ±1 mA (VDD=3.3V±10%) ±2 mA (VDD=5.0V±10%)
• Content of display - CGROM 5¥7 dots : 248 types (character data) - CGRAM 5¥7 dots : 8 types (character data) - ADRAM 16 (display digit) ¥2 bits (symbol data)
- DCRAM 16 (display digit) ¥8 bits (register for character data display) - General output port 2 bits (static operation)
• Display control function - Display digit : 1 to 16 digits - Display duty (brightness adjustment) : 256 stages - All lights ON/OFF
• 3 interfaces with microcontroller : DA, CS, CP (4 interfaces when RESET is added)
• 1-byte instruction execution (excluding data write and display duty set mode to RAM)
• Built-in oscillation circuit (external R and C)
• Package options: 64-pin plastic QFP (QFP64-P-1414-0.80-BK) (Product name : ML9206-xxGS-BK) 64-pin plastic SSOP (SSOP64-P-525-0.80-K) (Product name : ML9206-xxGS-K) xx indicates the code number.

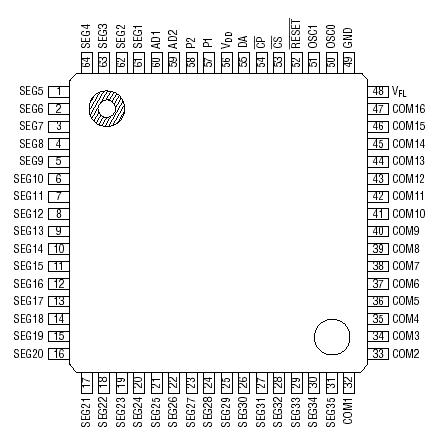

Pinout




Specifications

Parameter	Symbol	Condition		Rating	Unit
Supply Voltage (1)	VDD	-		0.3 to +6.5	V
Supply Voltage (2)	VSEG	-		80 to +0.3	V
	VCOM	-		0.3 to +0.3	V
Input Voltage	VIN	-		541	V
Power Dissipation	PD	Ta³25°C	QFP	590	mW
			SSOP
Storage Temperature	TSTG	-		55 to +2.0
Output Current	lO1	COM1 to COM16		40 to +0.0	mA
	lO2	AD1, AD2		20 to +0.0
	lO3	SSEG1 to SEG35		10 to +0.0
	lO4	P1, P2		4.0 to +4.0

Description

The ML9206-xx is a dot matrix vacuum fluorescent display tube controller driver IC which displays characters, numerics and symbols.

Dot matrix vacuum fluorescent display tube of ML9206-xx drive signals are generated by serial data sent from a micro-controller. A display system is easily realized by internal ROM and RAM for character display.

The ML9206-xx has low power consumption since it is made by CMOS process technology. -01 is available as a general-purpose code.

Custom codes are provided on customer's request.
