ML9209-xx

• Logic power supply and vacuum fluorescent display tube driving power supply (V_DD)
                                                                         : 3.3 V±10% or 5.0 V±10%
• Vacuum fluorescent display tube driving power supply (V_FL)
                                                                         : V_DD 20 V _to V_DD 42 V
• VFD driver output current
   (VFD driver output can be connected directly to the VFD tube. No pull-down resistor is required.)
• Segment driver (SEG116)                          : 6 mA (V_FL = V_DD 42 V)
• Segment driver (AD1, 2)                               : 15 mA (V_FL = V_DD 42 V)
• Grid driver (COM116)                                 : 30 mA (V_FL = V_DD 42 V)
• Content of display
• CGROM                                                          : 16 segments 240 types (character data)
• CGRAM                                                           : 16 segments 16 types (character data)
• ADRAM                                                           : 16 (display digit)* 2 bits (symbol data)
• DCRAM                                                           : 16 (display digit) * 8 bits (register for character data display)
• Display control function
• Display digits                                                  : 1 to 16 digits
• Display duty (brightness adjustment)            : 16 stages
• All display lights ON/OFF
• Four interfaces with microcontroller:                 DA,CS, CP, RESET
• Instruction executable with 1 byte (excluding data write for each RAM)
• Built-in oscillation circuit (resistor & capacitor connected externally)
• Package options:

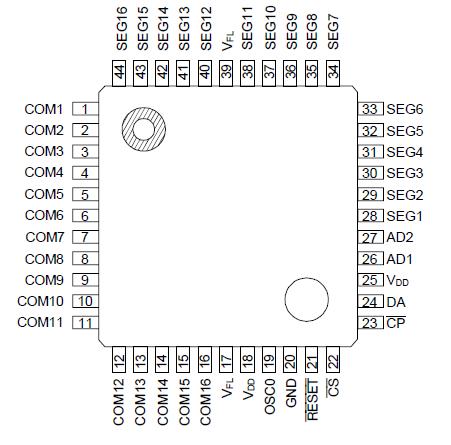

       44-pin plastic QFP (QFP44-P-910-0.80-2K) (ML9209-xxGA)

The ML9209-xx is an alphanumeric type vacuum fluorescent display (VFD) tube controller driver IC which can display alphanumeric characters, symbols, and bar charts.

Vacuum fluorescent display tube of ML9209-xx drive signals are generated by serial data sent from a micro-controller. A display system is easily realized by internal ROM and RAM for character display.

-01 is available as a general-purpose code.

Custom codes are provided on customer's request.
