ML87V3104

• Display memory: Horizontal 4096 dots, maximum, vertical 4096 dots, maximum (with restrictions)
• Display size: Horizontal 1024 dots, maximum, vertical 1024 dots, maximum (with restrictions) suitable for QVGA (320 × 240) or HVGA (640 × 240, 480 × 320)
• Number of display colors: 16/256 Colors out of 4096 colors (pseudo-colors) 4096/65536 Colors (direct colors)
• Color palette: 256 Colors × 12 bits (R4, G4, B4)
• Output data: STN 4/8 bits parallel, TFT 12 bits (R4, G4, B4) / 16 bits (R5, G6, B5)
• Display functions: Scroll (in units of 16 horizontal pixels and 1 vertical line), Sub-screen display (any position, pseudo-color mode only) Hardware cursor (16 × 16 × 2 bits)
• LCD Drive signals: Duty 1/64 to 1/1024, up to 16-gray levels, Programmable AC driving signal (Toggle period can be specified.)
• Host CPU: 8/16 bits (68k- Series, 80-Series, RISCs of different companies, etc.)
• Embedded memory: 4M bit DRAM
• Operating frequency: 15 MHz, maximum
• Power supply voltages: 3.3 V ± 0.3 V

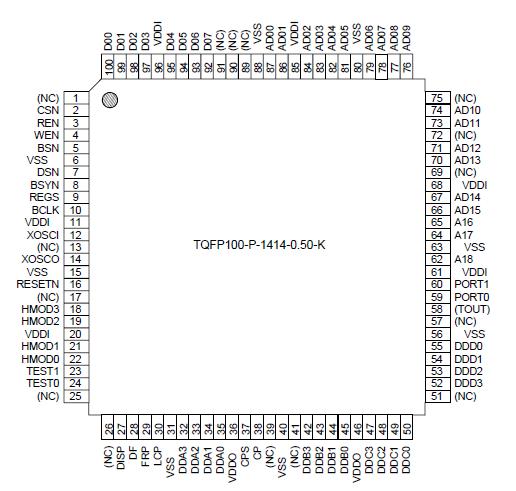

• Package: 100-Pin plastic TQFP (TQFP100-P-1414-0.50-K)

The ML87V3104 is an LCD graphic display controller intended for use in medium to small-sized equipment having such as QVGA grade medium-sized LCD panels, such as PDA or portable information terminals.

Since this LSI device ML87V3104 has an internal display memory, use of this device reduces the component count. It is possible to set an easy to use configuration of the display memory size, such as 1024 × 1024 dots × 4 bits or 2048 × 256 dots × 8 bits, depending on the application at hand, and it is possible to access the image data without having
to be concerned about address conversion.

The area specified in the display memory can be output on the display.

The display data and the control information of ML87V3104 can be set by the host CPU.
