Product Details

Description



Features:

• Built-in memory:Frame memory (4:1:1 data equivalent) × 1 unit
• Maximum input and output operating frequencies (16 bits/8 bits, ITU-R BT.656):14.75/29.5 MHz
• Power supply voltage:3.3 V ± 0.3 V
• Input pin:LVTTL (3.3 V)
• Output pin:LVCMOS (3.3 V)
• Input data format:
YCbCr (8 bits (Y) + 8 bits (CbCr) (4:2:2) + Sync.): 16-bit mode
YCbCr (8 bits (YCbCr) (4:2:2) + Sync.): 8-bit mode
ITU-R BT.656 (8 bits (YCbCr)): ITU-R BT.656 mode
• Output data format:
YCbCr (8 bits (Y) + 8 bits (CbCr) (4:2:2) + Sync.): 16-bit mode
YCbCr (8 bits (YCbCr) (4:2:2) + Sync.): 8-bit mode (Selectable in 8-bit input mode)
ITU-R BT.656 (8 bits (YCbCr)): ITU-R BT.656 mode (Selectable in input ITU-R BT.656)
• Serial bus:I2C-bus interface: (Standard mode: 100 kbps/Fast mode: 400 kbps)
• Internal memory controller:
Compatible with 625/50 Hz 2:1, 525/60 Hz 2:1
Compatible horizontal effective pixels: 640 (525 line mode only), 720, 768
• Frame-recursive noise reduction:Frame-recursive noise detection and subtraction Auto mode noise reduction
• Package:100 pin TQFP (TQFP100-P-1414-0.50-K)(ML87V2105TB)

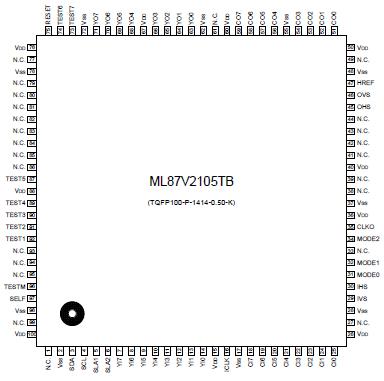

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Power supply voltage
VDD
Ta = 25°C
0.3 to 4.6
V
Input pin voltage
VI
Ta = 25°C
0.3 to 7.0
V
Output pin short-circuit current
IOS
Ta = 25°C
50
mA
Power dissipation
PD
Ta = 25°C
1
W
Operating temperature
Topr
-
0 to 70
°C
Storage temperature
Tstg
-
50 to 150
°C



Description

The ML87V2105 comprises a 5.6 Mbit frame memory, a noise reduction filter, and a memory controller to reduce frame-recursive 3D noise in video signals.

The motion adaptive noise reduction is performed between frames, between fields, or between lines, to reduce the afterimage particular to 3D noise reduction as far as possible, while achieving effective noise reduction.The ML87V2105 also features an automatic noise reduction mode that automatically detects the noise level in the input video data to set the optimum noise reduction.

Because it is possible to select the same format for output as for input, the ML87V2105 can be introduced into an existing system, making it easy to achieve noise reduction.
