ML67Q4050

Features: • CPU - 32-bit RISC CPU (ARM7TDMI) - Little endian byte order - Maximum operating frequency: 33.333 MHz - Instruction set: Free switching between a highly dense 32-bit instruction set and a 16-bit subset offering higher object code efficiency - General-purpose registers: 32-bit * 3...

product image

ML67Q4050 Picture
See larger image
SeekIC No. : 004422220 Detail

ML67Q4050: Features: • CPU - 32-bit RISC CPU (ARM7TDMI) - Little endian byte order - Maximum operating frequency: 33.333 MHz - Instruction set: Free switching between a highly dense 32-bit instruction se...

ML67Q4050 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ML67Q4050
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• CPU
   - 32-bit RISC CPU (ARM7TDMI)
   - Little endian byte order
   - Maximum operating frequency: 33.333 MHz
   - Instruction set: Free switching between a highly dense 32-bit instruction set and a 16-bit subset offering
   higher object code efficiency
   - General-purpose registers: 32-bit * 31
   - Barrel shifter: Simultaneous ALU and barrel shift operations in the same instruction
   - Multiplier (32-bit * 8-bit)
   - JTAG interface for debugging
• Built-in Memory
   - SRAM: 16Kbytes (4K * 32bits), 1-cycle access, connected to the processor bus
   - Built-in Flash ROM: 128Kbytes (ML67Q4051, ML67Q4061) or 64Kbytes (ML67Q4050, ML67Q4060),
   1-cycle access, connected to the processor bus
   FlashROM programming cycle count: 100 (max.)
   - BootROM: 8Kbytes, connected to AHB
• External Memory Controller (only for ML67Q4050 series)
   - Programmable access timing setting for each space
   - ROM (Flash) access function
   - Supports 1 bank * 16Mbytes ROM space.
   - Supports 16-bit and 32-bit devices
   - Supports flash memories
   - Supports page accessing
   - SRAM access function
   - Supports 1 bank * 16Mbytes SRAM space.
   - Supports 16-bit and 32-bit devices.
   - Supports asynchronous SRAM.
   - External I/O access function
   - Supports 2-bank / space.
   - Supports 8-bit, 16-bit, and 32-bit devices.
   - Supports asynchronous wait from external devices.
   - Allows address setup in units of single cycles, RE/WE pulse, and data-off timing setting.
• Interrupt Controller
   - One fast interrupt (FIQ) source (external)
   - 31 interrupt (IRQ) sources (40 interrupt sources for ML67Q4050 series)
   - Independent masking for each FIQ and IRQ source
   - Independent interrupt priority level settings for each IRQ source
   - Priority control blocking IRQ requests with priority levels at or below those for interrupt requests
   currently being processed


Pinout

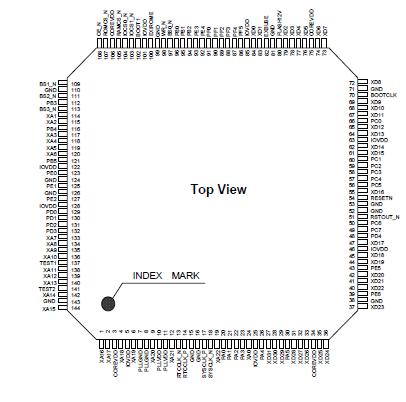

Connection Diagram
