ML670100

· Operating Voltage 2.7 to 3.6V
· Operating Frequency 25MHz maximum(3.0 to 3.6V)
· On-chip memory-ROM: 128 kilobytes
  - RAM: 4 kilobytes
· I/O Function I/O ports: 8 bits x 9, I/O directions are specified at the bit level
· Timer
  - Flexible timer (16-bit multi-function timer with six channels) Choice of operating modes: auto-reload timer, compare output, PWM and capture
  - Time base counter with WDT function
· Serial Port-One asynchronous serial port (UART) with baud rate generator
  - Two clock synchronous serial port
· A-to-D Converter
  - 8  - bit resolution A-to-D converter with eight analog input ports
· Interrupt Controller
  - Support for 28 interrupt sources: 9 external and 19 internal
  - Choice of eight priority levels for each source
· External Memory Controller
  - Direct connection to ROM, SRAM, DRAM and peripheral devices
  - Support for four banks: two for ROM, SRAM and I/O devices plus two for
· DRAM
  - User-configurable bus width (8/16 bits) and wait control and other parameters for accessing memory and external devices
· Clock Generator
  - Built-in crystal oscillation circuit and PLL
  - Choice of divider ratio (1/1, 1/2, 1/4) for adjusting operating clock frequency to match the load of processing

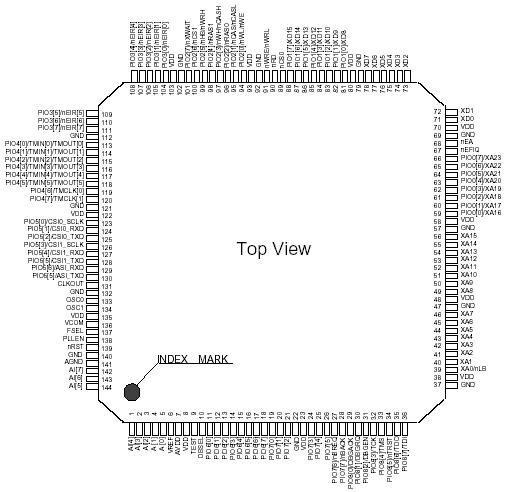

· Package 144-pin LQFP ( LQFP144-P-2020-0.50-K)

The ML670100 is a high-performance 32-bit microcontroller combining a RISC based, 32-bit CPU core - the ARM7TDMITM - with memory and such peripheral circuits as timers, serial ports, and analog-todigital converter. This combination of 32-bit data processing, built-in memory, and on-chip peripherals make it ideal for controlling equipment requiring both high speed and high functionality. An external memory controller ML670100 supports direct connection to memory and peripheral devices for adding even more functionality.
