Product Details

Description



Pinout

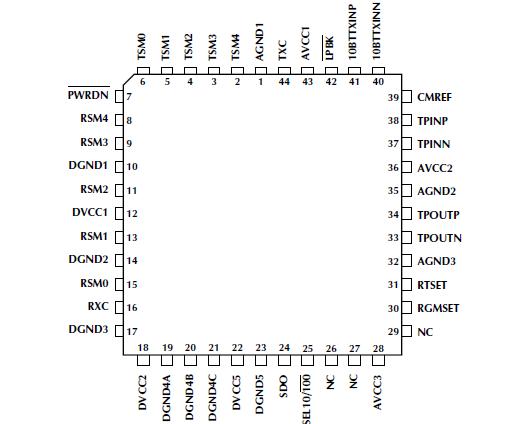

Connection Diagram


Specifications

VCC Supply Voltage Range .................... GND 0.3V to 6V
Input Voltage Range
Digital Inputs ............................ GND 0.3V to VCC + 0.3V
TPINP, TPINN, 10BTTXINN,
10BTTXINP ................................ GND 0.3V to VCC + 0.3V
Output Current
TPOUTP, TPOUTN...................................................... 60mA
All other outputs ...................................................... 10mA
Junction Temperature .............................................. 150
Storage Temperature ................................ 65 to 150
Lead Temperature (Soldering, 10 sec) ...................... 260


Description

The ML6694 is a high-speed physical layer transceiver that provides a 5-bit (or symbol) interface to unshielded twisted pair cable media. The ML6694 is well suited for repeater applications using repeater controllers with the 5-bit interface. The ML6694 may also be used in FDDIover- copper applications.

The ML6694 integrates 125MHz clock recovery/ generation, receive adaptive equalization, baseline wander correction and MLT-3/10BASE-T transmitter.
