ML6692

Features: · Single-chip 100BASE-TX physical layer· Compliant to IEEE 802.3u 100BASE-TX standard· Supports adapter, repeater and switch applications· Single-jack 10BASE-T/100BASE-TX solution when used with external 10Mbps PHY· Compliant MII (Media Independant Interface)· Auto-negotiation capability...

product image

ML6692 Picture
See larger image
SeekIC No. : 004422206 Detail

ML6692: Features: · Single-chip 100BASE-TX physical layer· Compliant to IEEE 802.3u 100BASE-TX standard· Supports adapter, repeater and switch applications· Single-jack 10BASE-T/100BASE-TX solution when use...

ML6692 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ML6692
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Single-chip 100BASE-TX physical layer
· Compliant to IEEE 802.3u 100BASE-TX standard
· Supports adapter, repeater and switch applications
· Single-jack 10BASE-T/100BASE-TX solution when used with external 10Mbps PHY
· Compliant MII (Media Independant Interface)
· Auto-negotiation capability
· 4B/5B encoder/decoder
· Stream Cipher scrambler/descrambler
· 125MHz clock recovery/generation
· Baseline wander correction
· Adaptive equalization and MLT-3 encoding/decoding
· Supports full-duplex operation


Pinout

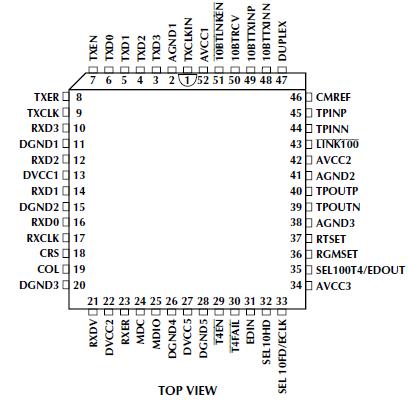

Connection Diagram


Specifications

VCC Supply Voltage Range ..............GND 0.3V to 6V
Input Voltage Range
Digital Inputs ..................... GND 0.3V to VCC +0.3V
TPINP, TPINN, 10BTTXNP, 10BTTXINN, .......................
........................................... GND 0.3V to VCC +0.3V
Output Current
TPOUTP, TPOUTN .............................................. 60mA
All other outputs ................................................10mA
Junction Temperature ....................................... 150
Storage Temperature .......................65 to +150
Lead Temperature (Soldering, 10 sec) .............. 260
Thermal Resistance (JA)
PLCC ............................................................... 40/W
TQFP ............................................................... 52/W


Description

The ML6692 implements the complete physical layer of the Fast Ethernet 100BASE-TX standard. The ML6692 interfaces to the controller through the standard-compliant Media Independent Interface (MII). The ML6692 functionality includes auto-negotiation, 4B/5B encoding/ decoding, Stream Cipher scrambling/descrambling, 125MHz clock recovery/generation, receive adaptive equalization, baseline wander correction, and MLT-3/ 10BASE-T transmitter.

For applications requiring 100Mbps only, such as repeaters, the ML6692 offers a single-chip per-port solution. For 10/100 dual speed adapters or switchers, 10BASE-T functionality may be attained using Micro Linear's ML2653, or by using an Ethernet controller that contains an integrated 10BASE-T PHY.
