Features:

Compliant with IEEE 802.3u Fast Ethernet (100BASE-TX)standard
Compliant with ANSI X3T12 FDDI over copper(TP-PMD) standard
Integrated baseline wander correction circuit
Transmitter converts NRZI ECL signals to MLT-3 currentdriven outputs
Transmitter can be externally turned off(high impedence) for true quiet line
Receiver includes adaptive equalizer and MLT-3 toNRZI decoder
Operates over 100 meters of STP or category 5 UTPTwisted Pair Cable set by the IEEE 802.3u standards
32-pin PLCC and TQFP




Pinout

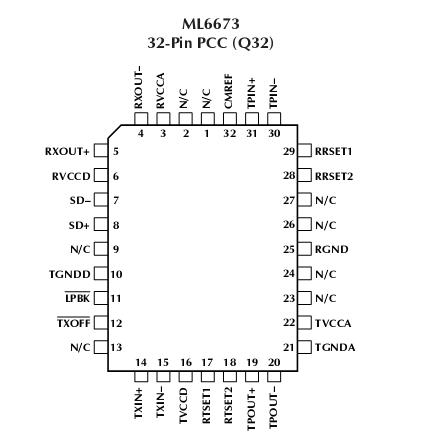

  Connection Diagram


Specifications

VCC Supply Voltage Range ...............GND 0.3V to 6V
Input Voltage Range
Digital Inputs........................GND 0.3V to VCC +0.3V
Output Current
TPOUT±, SD±, RXOUT±  .................................. 50mA
All other outputs  .............................................. 10mA
Junction Temperature..........................................150
Storage Temperature........................... 65to 150
Lead Temperature (Soldering, 10 sec).................260
Thermal Resistance (JA)
PLCC ............................................................... 60/W
TQFP ............................................................... 80/W



Description

The ML6673 is a complete monolithic transceiver for 125Mbaud MLT-3 encoded data transmission over Category 5unshielded twisted pair and shielded twisted pair cables.The ML6673 integrates the baseline restoration function defined in the TP-PMD standard. The adaptive equalizer inthe ML6673 will accurately compensate for line losses exceeding the IEEE 802.3u limit of 100m of UTP.

The ML6673 receive section consists of an equalizing filterwith a feedback loop for controlling effective line compensation. The feedback loop contains a filter anddetection block for determining the proper control signal.The ML6673 also contains data comparators withprecisely controlled slicing thresholds and an MLT-3 toNRZI translator.

The ML6673 transmit section accepts ECL 100Kcompatible NRZ inputs and converts them to differentialcurrent mode MLT-3 signals. Transmit amplitude iscontrolled by a single external resistor.
