ML6516244

The ML6516244 is a BiCMOS, 16-bit buffer/line driver with 3-state outputs. This device was specifically designed for high speed bus applications. Its 16 channels support propagation delay of 2.5ns maximum, and fast output enable and disable times of 7.0ns or less to minimize datapath delay.

This ML6516244 is designed to minimize undershoot, overshoot, and ground bounce to decrease noise delays. These transceivers implement a unique digital and analog implementation to eliminate the delays and noise inherent in traditional digital designs. The ML6516244 offers a new method for quickly charging up a bus load capacitor to minimize bus settling times, or FastBus™ Charge. FastBus Charge is a transition current, (specified as IDYNAMIC) that injects between 60 to 200mA (depending on output load) of current during the rise time and fall time. This current of ML6516244 is used to reduce the amount of time it takes to charge up a heavily-capacitive loaded bus, effectively reducing the bus settling times, and improving data/clock margins in tight timing budgets.

Micro Linear's solution of ML6516244 is intended for applications for critical bus timing designs that include minimizing device propagation delay, bus settling time, and time delays due to noise. Applications include; high speed memory arrays, bus or backplane isolation, bus to bus bridging, and sub- 2.5ns propagation delay schemes.

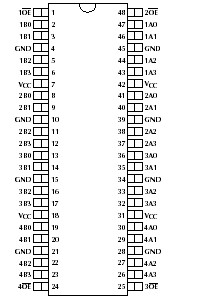

The ML6516244 follows the pinout and functionality of the industry standard 3.3V-logic families.
