ML4624

Features: `Data rates up to 40MHz or 80MBd`Can be powered by either +5V providing TTL or raised ECL level outputs or 5.2V providing ECL levels`Low noise design: 25mV RMS over bandwidth`Adjustable Link Monitor function with hystersis`Wide 55dB input dynamic range`Low power design`ML4624 is pin comp...

product image

ML4624 Picture
See larger image
SeekIC No. : 004422064 Detail

ML4624: Features: `Data rates up to 40MHz or 80MBd`Can be powered by either +5V providing TTL or raised ECL level outputs or 5.2V providing ECL levels`Low noise design: 25mV RMS over bandwidth`Adjustable Li...

ML4624 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ML4624
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Data rates up to 40MHz or 80MBd
`Can be powered by either +5V providing TTL or raised ECL level outputs or 5.2V providing ECL levels
`Low noise design: 25mV RMS over bandwidth
`Adjustable Link Monitor function with hystersis
`Wide 55dB input dynamic range
`Low power design
`ML4624 is pin compatible with the ML4621


Application

`IEEE 802.3 10BASE-FL Receiver
`IEEE 802.5 fiber optic token ring, 4 and 16mbps
`Fiber Optic Data Communications and Telecommunications Receivers


Pinout

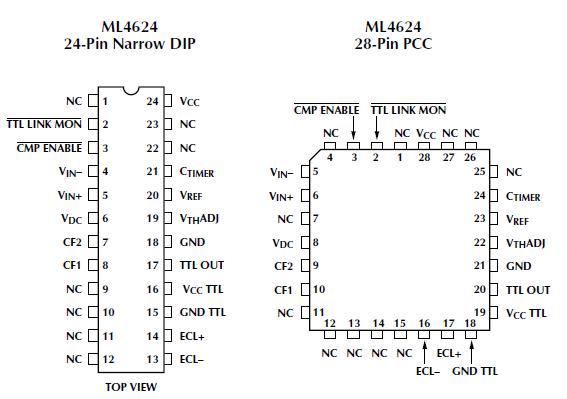

Connection Diagram




Specifications

VCC GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to +7.0
VCC TTL GND TTL . . . . . . . . . . . . . . . . . . . . . . . 0.3 to +7.0
Inputs/Outputs GND . . . . . . . . . . . . . . . . . . . 0.3 to VCC +0.3
Storage Temperature Range . . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature (Soldering 10 sec.) . . . . . . . . . . . . . . +260°C


Description

The ML4622 and ML4624 data quantizers are low noise,wideband, bipolar monolithic ICs designed specifically forsignal recovery applications in fiberoptic receiver systems.ML4624 contain a wideband limiting amplifier which iscapable of accepting an input signal as low as 2mVP-Pwith a 55dB dynamic range. This high level of sensitivityis achieved by using a DC restoration feedback loopwhich nulls any offset voltage produced in the limitingamplifier.

The output stage of ML4624 is a high speed comparator circuit withboth TTL and ECL outputs. An enable pin is included foradded control.

The Link Detect circuit of ML4624 provides a Link Monitor functionwith a user selectable reference voltage. This circuitonitors the peaks of the input signal and provides alogic level output indicating when the input falls belowan acceptable level. This output can be used to disablethe quantizer and/or drive an LED, providing a visible linkstatus.
