Type: Fanout Buffer (Distribution)
Differential - Input:Output: No/No
Mounting Type: Surface Mount
Input: LVCMOS
Output: LVCMOS
Frequency - Max: 200MHz
Ratio - Input:Output: 1:8
Number of Circuits: 2
Operating Temperature: 0°C ~ 70°C
Voltage - Supply: 3 V ~ 3.6 V
Manufacturer: IDT, Integrated Device Technology Inc
Packaging: Tape & Reel (TR)
Series: 74CB, Buffalo™
Package / Case: 28-SSOP (0.154", 3.90mm Width)
Supplier Device Package: 28-QSOP
Specifications | No. of Inputs | 2 |
| Temperature | C |
| Input Type | LVCMOS |
| No. of Outputs | 16 |
| Output Type | LVCMOS |
| Voltage | 3.3 V |
| Package | QSOP 28 |
| Speed | NA |
| Max. Input Frequency | 200 MHz |
| Propagation Delay | 3 ns to 6 ns |
| Output to Output Skew | 250 ps |
| Core Supply Voltage (VDD) | 3.3 V |
| Output Supply Voltage (VDDO) | 3.3 V |
DescriptionDUAL 1 TO 8 BUFFALO CLOCK

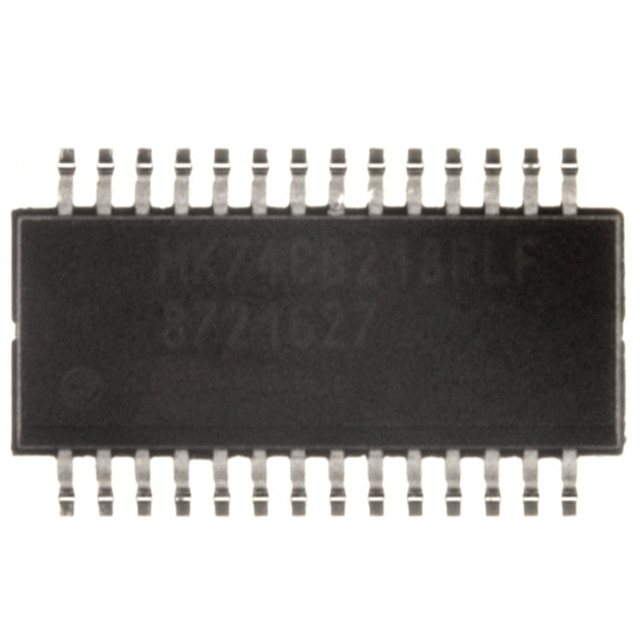

The MK74CB218RTR Buffalo? is a monolithic CMOS high speed clock driver. It consists of two identical single input to eight low-skew output, non-inverting clock drivers. This can eliminate concerns of part to part matching in many systems. The MK74CB218RTR is packaged in the tiny 28-pin SSOP, which uses the same board space as the narrow 16-pin SOIC. The inputs can be connected together for a 1 to 16 fanout buffer.
The MK74CB218RTR can also act as a voltage translator, since it is possible to run the inputs at 3.3 V and the outputs at 2.5 V.
A quad 1 to 4, and PECL versions, are also available. Consult IDT for more details.
Family of PartsThe MK74CB218RTR Buffalo? is designed to be used with IDT's clock synthesizer devices. The inputs of the Buffalo? are matched to the outputs of IDT clock synthesizers.
Not recommended for new designs. See the MK74CB218RTR for new designs.
MK74CB218RTR features:
Tiny 28-pin SSOP (150 mil) package
Available in Pb (lead) free package
Dual one input to eight output clock drivers
Outputs are skew controlled to within 250 ps
A outputs and B outputs matched to 250 ps
2.5 V or 3.3 V ±10% supply voltages
Output Enable tri-states each bank of eight
Clock speeds up to 200 MHzParameters: | Technical/Catalog Information | MK74CB218RTR |
| Vendor | IDT, Integrated Device Technology Inc |
| Category | Integrated Circuits (ICs) |
| Type | Clock Driver |
| Voltage - Supply | 3 V ~ 3.6 V |
| Number of Outputs | 16 |
| Input | LVCMOS |
| Output | LVCMOS |
| Frequency-Max | 200MHz |
| Package / Case | 28-SSOP |
| Packaging | Tape & Reel (TR) |
| Operating Temperature | 0°C ~ 70°C |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | MK74CB218RTR
MK74CB218RTR
|
