MK74CB163

Features: • Tiny 28 pin SSOP (150 mil) package• One input to sixteen output clock drivers• Outputs are skew matched to within 250ps• 3.3 V±10% supply voltage• Clock speeds up to 156 MHz• 2 Output Enables allow configuration as 1 to 6, 1 to 10, or 1 to 16 buffers...

product image

MK74CB163 Picture
See larger image
SeekIC No. : 004421787 Detail

MK74CB163: Features: • Tiny 28 pin SSOP (150 mil) package• One input to sixteen output clock drivers• Outputs are skew matched to within 250ps• 3.3 V±10% supply voltage• Clock spe...

MK74CB163 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MK74CB163
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Tiny 28 pin SSOP (150 mil) package
• One input to sixteen output clock drivers
• Outputs are skew matched to within 250ps
• 3.3 V±10% supply voltage
• Clock speeds up to 156 MHz
• 2 Output Enables allow configuration as 1 to 6, 1 to 10, or 1 to 16 buffers.
• Converts PECL input to CMOS level outputs

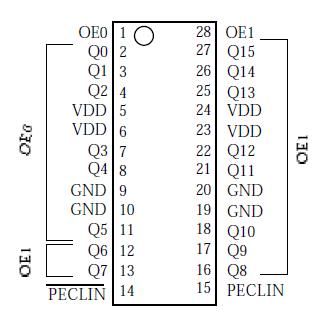

Pinout

Connection Diagram


Specifications

Parameter
Conditions
Minimum
Typical
Maximum
Units
Supply Voltage, VDD Referenced to GND
7
V
Inputs Referenced to GND
-0.5
VDD+0.5V
V
Clock Outputs Referenced to GND
-0.5
VDD+.5V
V
Ambient Operating Temperature
0
70
Soldering Temperature Max of 20 seconds
260
Storage temperature
-65
150



Description

The MK74CB163 Buffalo™ is a monolithic CMOS high speed clock driver. It consists of a PECL input to sixteen low-skew output, noninverting clock drivers. This monolithic solution eliminates any concern for part-to-part skew matching. The MK74CB163 is packaged in the tiny 28 pin SSOP, which uses the same board space as the narrow 16 pin SOIC.
