MK74CB217

Features: • Tiny 28 pin SSOP (150 mil) package• Dual one input to eight output clock drivers• Outputs are skew matched to within 250 ps• A outputs and B outputs matched to 250 ps• 3.3 V or 5 V supply voltage• Output Enable tri-states each bank of eight• Cl...

product image

MK74CB217 Picture
See larger image
SeekIC No. : 004421789 Detail

MK74CB217: Features: • Tiny 28 pin SSOP (150 mil) package• Dual one input to eight output clock drivers• Outputs are skew matched to within 250 ps• A outputs and B outputs matched to 25...

MK74CB217 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MK74CB217
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Tiny 28 pin SSOP (150 mil) package
• Dual one input to eight output clock drivers
• Outputs are skew matched to within 250 ps
• A outputs and B outputs matched to 250 ps
• 3.3 V or 5 V supply voltage
• Output Enable tri-states each bank of eight
• Clock speeds up to 200 MHz


Application

The MK74CB217 Buffalo™ is designed to be used with ICS's clock synthesizer devices. The inputs of the Buffalo are matched to the outputs of ICS clock synthesizers. Consult ICS for applications support.




Pinout

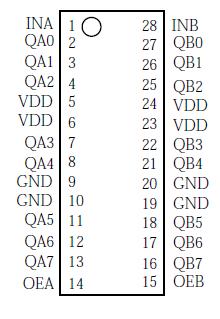

Connection Diagram


Specifications

Parameter
Conditions
Minimum
Typical
Maximum
Units
Supply Voltage, VDD Referenced to GND
7
V
Inputs Referenced to GND
-0.5
VDD+0.5V
V
Clock Outputs Referenced to GND
-0.5
VDD+0.5V
V
Ambient Operating Temperature
0
70
Soldering Temperature Max of 20 seconds
260
Storage temperature
-65
150



Description

The MK74CB217 Buffalo™ is a monolithic CMOS high speed clock driver. It consists of two identical single input to eight low-skew output, non-inverting clock drivers. This eliminates concerns of part to part matching in many systems. The MK74CB217 is packaged in the tiny 28 pin SSOP, which uses the same board space as the narrow 16 pin SOIC. The inputs can be connected together for a 1 to 16 fanout buffer.

A quad 1 to 4, and PECL versions, are also available. Consult us for more details.
