MK3713

Features: • Packaged in 8 pin SOIC• Ideal for T1 and E1 VCXOs• Output range of 1.25 MHz to 10 MHz• For a 10-20 MHz output range, use the MK3711• For higher than 20 MHz, use the MK3732-05• 3.3 V only operating voltage• Uses an inexpensive 10 - 20 MHz extern...

product image

MK3713 Picture
See larger image
SeekIC No. : 004421727 Detail

MK3713: Features: • Packaged in 8 pin SOIC• Ideal for T1 and E1 VCXOs• Output range of 1.25 MHz to 10 MHz• For a 10-20 MHz output range, use the MK3711• For higher than 20 MHz,...

MK3713 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MK3713
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Packaged in 8 pin SOIC
• Ideal for T1 and E1 VCXOs
• Output range of 1.25 MHz to 10 MHz
• For a 10-20 MHz output range, use the MK3711
• For higher than 20 MHz, use the MK3732-05
• 3.3 V only operating voltage
• Uses an inexpensive 10 - 20 MHz external crystal
• On-chip VCXO (patented) with pull range of 200ppm (minimum)
• VCXO tuning voltage of 0 to 3.3 V
• 12mA output drive capability at TTL levels
• Advanced, low power, sub-micron CMOS process


Pinout

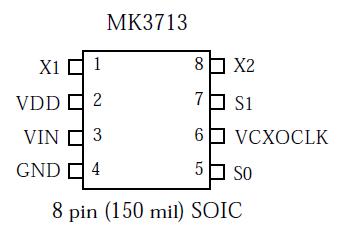

Connection Diagram


Specifications

Parameter
Conditions
Minimum
Typical
Maximum
Units
Supply Voltage, VDD Referenced to GND
7
V
Inputs Referenced to GND
-0.5
VDD+0.5V
V
Ambient Operating Temperature
0
70
Soldering Temperature Max of 10 seconds
260
Storage temperature
-65
150



Description

The MK3713 is ICS/MicroClock's lowest cost, low jitter, high performance 3.3 Volt VCXO designed to replace expensive VCXO modules. The on-chip Voltage Controlled Crystal Oscillator accepts a 0 to 3.3 V input voltage to cause the output clocks to vary by ±100 ppm. Using ICS/MicroClock's patented VCXO and analog Phase-Locked Loop (PLL) techniques, the device uses an inexpensive external pullable crystal input to produce the output clock.

ICS/MicroClock MK3713 manufactures the largest variety of communications, set-top box, and multimedia clock synthesizers for all applications. If more clock outputs are needed, see the MK3732 or MK377x family of parts. Consult ICS/MicroClock to eliminate VCXOs, crystals and oscillators from your board.
