Position: Home  > All Categories> Integrated Circuits (ICs) > MJ-2523-SMT

MJ-2523-SMT

CONN AUDIO JACK MONO 2.5MM SMD

product image

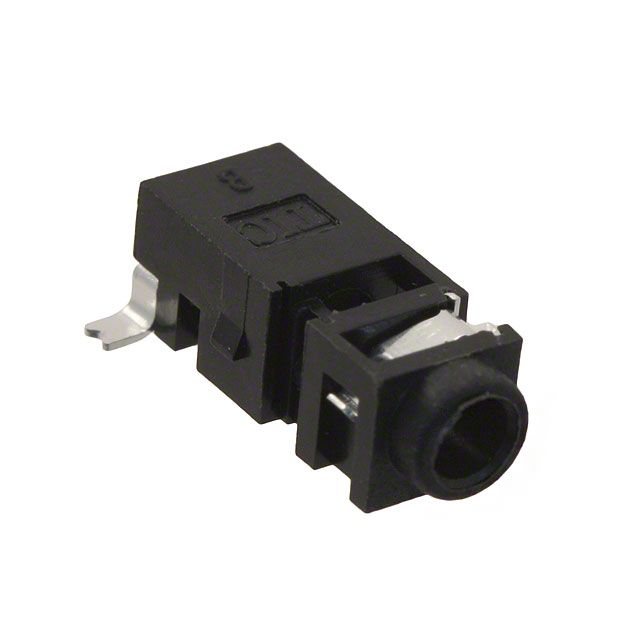

MJ-2523-SMT Picture
See larger image
SeekIC No. : 003016397 Detail

MJ-2523-SMT: CONN AUDIO JACK MONO 2.5MM SMD

MJ-2523-SMT Data Sheet

floor Price/Ceiling Price

US $ .22~.29 / Piece | Get Latest Price
Part Number:
MJ-2523-SMT
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1000
  • 1000~2000
  • 2000~3000
  • 3000~5000
  • 5000~10000
  • 10000~25000
  • 25000~50000
  • Unit Price
  • $.29
  • $.26
  • $.24
  • $.24
  • $.23
  • $.22
  • $.22
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: CUI Inc
Connector Type: Phone Jack Gender: Female
Signal Lines: Mono Plug/Mating Plug Diameter: 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Number of Positions/Contacts: 2 Conductors, 3 Contacts Internal Switch(s): Single Switch
Maximum Reverse Leakage Current : 800 uA Mounting Type: Surface Mount, Right Angle
Termination: Solder Shielding: Unshielded
Features: -

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Phone Jack
Gender: Female
Signal Lines: Mono
Plug/Mating Plug Diameter: 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch
Mounting Type: Surface Mount, Right Angle
Termination: Solder
Shielding: Unshielded
Features: -
Color - Contact: Black


Specifications

  • rating: 12 Vdc @ 1A
  • contact resistance: 30mΩ MAX
  • insulation resistance: 50MΩ MIN @ 500V DC
  • voltage withstand: 500V AC RMS for 1 minute
  • flammability: UL94V-0 rated
  • life: 5,000 cycles
  • 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">



    • Parameters:

    Technical/Catalog InformationMJ-2523-SMT
    VendorCUI Inc (VA)
    CategoryConnectors
    Connector TypePhone Jack
    GenderFemale
    Plug/Mating Plug Diameter2.5mm (Sub Mini, Miniature)
    Signal LinesMono
    Number of Positions/Contacts2 Conductors, 3 Contacts
    Mounting TypeSurface Mount, Right Angle
    FeaturesInternal Switch
    ColorBlack
    TerminationSolder
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names MJ 2523 SMT
    MJ2523SMT
    CP 2523MJCT ND
    CP2523MJCTND
    CP-2523MJCT
