MJ-2505: CONN 2.5MM STRAIGHT JACK PNL MNT

MJ-2505 Data Sheet

Get Latest Price

Part Number:: MJ-2505
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MJ-2502 evaluate
CONN 2.5MM RT ANGLE JACK PNL MNT
MJ-2503A evaluate
CONN 2.5MM JACK PANEL MNT

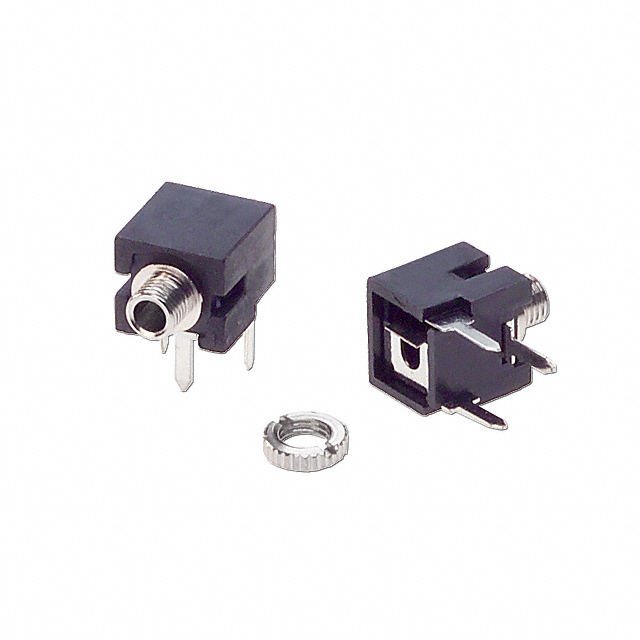

MJ-2506 evaluate
US $.2 - .52 / Piece

CONN AUDIO JACK 2.5MM MONO

Product Details

Quick Details

Series:	-	Manufacturer:	CUI Inc
Connector Type:	Phone Jack	Gender:	Female
Signal Lines:	Mono	Plug/Mating Plug Diameter:	2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Recovery Time :	20 ns	Number of Positions/Contacts:	2 Conductors, 3 Contacts
Internal Switch(s):	Single Switch	Mounting Type:	Panel Mount; Through Hole
Termination:	Solder Eyelet(s)	Shielding:	Unshielded
Features:	Mounting Hardware, Thread Lock

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Phone Jack
Gender: Female
Signal Lines: Mono
Plug/Mating Plug Diameter: 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch
Shielding: Unshielded
Color - Contact: Silver
Termination: Solder Eyelet(s)
Features: Mounting Hardware, Thread Lock
Mounting Type: Panel Mount; Through Hole

Specifications

rating: 12 Vdc @ 1A

contact resistance: 30mΩ MAX

insulation resistance: 50MΩ MIN @ 500 Vdc

voltage withstand: 250V AC RMS for 1 minute

flammability: UL94V-0 rated

life: 10,000 cycles
