SeekIC No. : 003016406 Detail

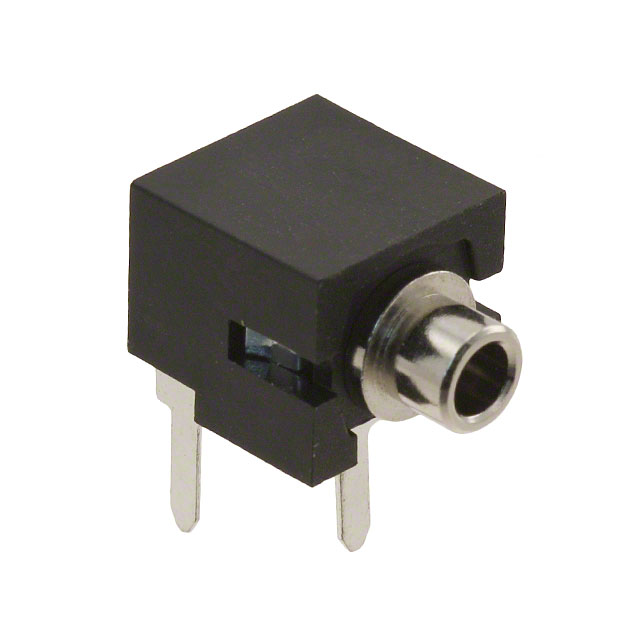

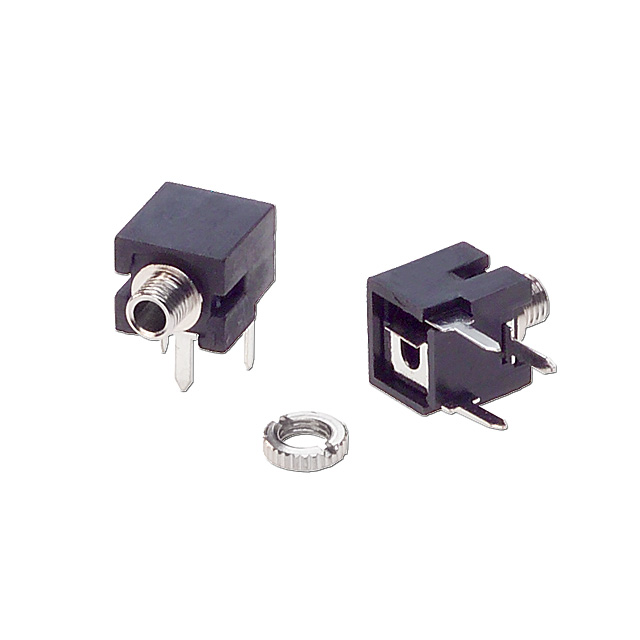

MJ-2506N: CONN AUDIO JACK 2.5MM MONO

MJ-2506N Data Sheet

US $ .2~.75 / Piece | Get Latest Price

Part Number:: MJ-2506N
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500
500~1000
1000~2500

Unit Price
$.75
$.52
$.35
$.28
$.25
$.2

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Series:	-	Manufacturer:	CUI Inc
Connector Type:	Phone Jack	Gender:	Female
Signal Lines:	Mono	Plug/Mating Plug Diameter:	2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Recovery Time :	20 ns	Number of Positions/Contacts:	2 Conductors, 3 Contacts
Internal Switch(s):	Single Switch	Mounting Type:	Through Hole, Right Angle
Termination:	Solder	Shielding:	Unshielded
Features:	-

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Phone Jack
Gender: Female
Signal Lines: Mono
Plug/Mating Plug Diameter: 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch
Termination: Solder
Shielding: Unshielded
Features: -
Mounting Type: Through Hole, Right Angle
Color - Contact: Silver

Specifications

rating: 12 Vdc @ 1A

contact resistance: 30mΩ MAX

insulation resistance: 50MΩ MIN @ 500 Vdc

voltage withstand: 500V AC RMS for 1 minute

flammability: UL94V-0 rated

life: 5,000 cycles

640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">

Parameters:

Technical/Catalog Information	MJ-2506N
Vendor	CUI Inc
Category	Connectors
Connector Type	Phone Jack
Gender	Female
Plug/Mating Plug Diameter	2.50mm (Sub Mini, Miniature)
Signal Lines	Mono
Number of Positions/Contacts	2 Conductors, 3 Contacts
Mounting Type	Through Hole, Right Angle
Features	-
Color	Black
Termination	Solder
Internal Switch(s)	Single Switch
Shielding	Unshielded
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MJ 2506N MJ2506N CP 2506N ND CP2506NND CP-2506N
