MCM69P819

Features: • MCM69P8193.5: 3.5 ns Access/6 ns Cycle (166 MHz) MCM69P8193.8: 3.8 ns Access/6.7 ns Cycle (150 MHz) MCM69P8194: 4 ns Access/7.5 ns Cycle (133 MHz)• 3.3 V + 10%, 5% Core Power Supply, 2.5 V or 3.3 V I/O Supply• ADSP, ADSC, andADV Burst Control Pins• Selectable B...

product image

MCM69P819 Picture
SeekIC No. : 004417925 Detail

MCM69P819: Features: • MCM69P8193.5: 3.5 ns Access/6 ns Cycle (166 MHz) MCM69P8193.8: 3.8 ns Access/6.7 ns Cycle (150 MHz) MCM69P8194: 4 ns Access/7.5 ns Cycle (133 MHz)• 3.3 V + 10%, 5% Core Powe...

floor Price/Ceiling Price

Part Number:
MCM69P819
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• MCM69P8193.5: 3.5 ns Access/6 ns Cycle (166 MHz)
   MCM69P8193.8: 3.8 ns Access/6.7 ns Cycle (150 MHz)
   MCM69P8194: 4 ns Access/7.5 ns Cycle (133 MHz)
• 3.3 V + 10%, 5% Core Power Supply, 2.5 V or 3.3 V I/O Supply
ADSP, ADSC, and ADV Burst Control Pins
• Selectable Burst Sequencing Order (Linear/Interleaved)
• SingleCycle Deselect Timing
• Internally SelfTimed Write Cycle
• Byte Write and Global Write Control
• PB1 Version 2.0 Compatible
• JEDEC Standard 119Pin PBGA and 100Pin TQFP Packages



Pinout

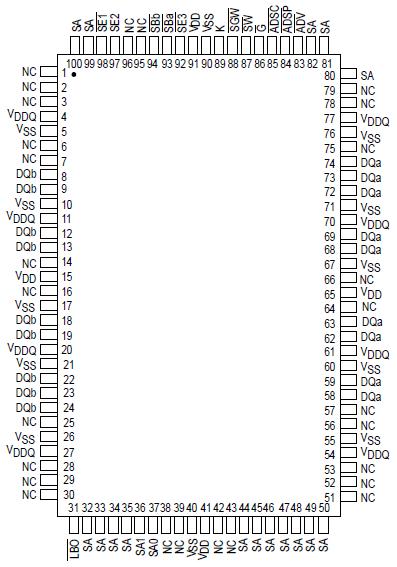

  Connection Diagram


Specifications

Rating
Symbol
Value
Unit
Notes
Power Supply Voltage
VDD
VSS 0.5 to + 4.6
V

I/O Supply Voltage
VDDQ
VSS 0.5 to VDD
V
2
Input Voltage Relative to VSS for Any Pin Except VDD
Vin, Vout
VSS 0.5 to
VDD + 0.5
V
2
Input Voltage (ThreeState I/O)
VIT
VSS 0.5 to
VDDQ + 0.5
V
2
Output Current (per I/O)
Iout
± 20
mA

Package Power Dissipation
PD
1.6
W
3
Ambient Temperature
TA
0 to 70
°C

Die Temperature
TJ
110
°C
3
Temperature Under Bias
Tbias
10 to 85
°C

Storage Temperature
Tstg
55 to 125
°C
