MCM69P817

Features: • MCM69P817 Speed Options Speed tKHKH PipelinedtKHQV Setup Hold IDD Pkg 200 MHz 5 ns 2.5 ns 0.5 ns 1 ns 475 mA PBGA 180 MHz 5.5 ns 3.0 ns 0.5 ns 1 ns 475 mA PBGA 166 MHz 6 ns 3.5 ns 0.5 ns 1 ns 475 mA PBGA• 3.3 V + 10%, 5% Core Power S...

product image

MCM69P817 Picture
See larger image
SeekIC No. : 004417923 Detail

MCM69P817: Features: • MCM69P817 Speed Options Speed tKHKH PipelinedtKHQV Setup Hold IDD Pkg 200 MHz 5 ns 2.5 ns 0.5 ns 1 ns 475 mA PBGA 180 MHz 5.5 ns 3.0 ns 0.5 ns 1 ns 47...

MCM69P817 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MCM69P817
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• MCM69P817 Speed Options

Speed tKHKH Pipelined
tKHQV		 Setup Hold IDD Pkg
200 MHz 5 ns 2.5 ns 0.5 ns 1 ns 475 mA PBGA
180 MHz 5.5 ns 3.0 ns 0.5 ns 1 ns 475 mA PBGA
166 MHz 6 ns 3.5 ns 0.5 ns 1 ns 475 mA PBGA
• 3.3 V + 10%, 5% Core Power Supply, Operates with a 3.3 V or 2.5 V I/O Supply
• ADSP, ADSC, and ADV Burst Control Pins
• Selectable Burst Sequencing Order (Linear/Interleaved)
• SingleCycle Deselect Timing
• Internally SelfTimed Write Cycle
• Byte Write and Global Write Control
• PB1 Version 2.0 Compatible
• JEDEC Standard 119Pin PBGA Package

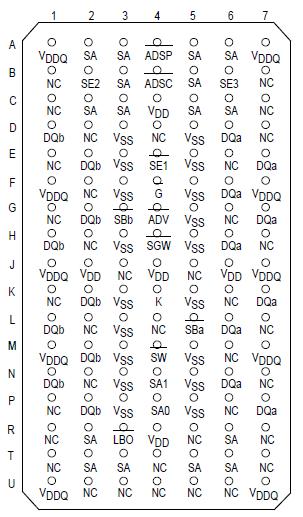

Pinout

Connection Diagram


Specifications

Rating
Symbol
Value
Unit
Power Supply Voltage
VDD
VSS 0.5 to + 4.6
V
I/O Supply Voltage (See Note 2)
VDDQ
VSS 0.5 to VDD
V
Input Voltage Relative to VSS for Any
Pin Except VDD (See Note 2)
Vin, Vout
VSS 0.5 to
VDD + 0.5
V
Input Voltage (ThreeState I/O)
(See Note 2)
VIT
VSS 0.5 to
VDDQ + 0.5
V
Output Current (per I/O)
Iout
± 20
mA
Package Power Dissipation (See Note 3)
PD
1.6
W
Temperature Under Bias
Tbias
10 to 85
°C
Storage Temperature
Tstg
55 to 125
°C
