MCM67D709

Features: • Single 5 V ± 5% Power Supply• 88110/88410 Compatibility: 16/60 MHz, 20/50 MHz• SelfTimed Write Cycles• Clock Controlled Output Latches• Address and Data Input Registers• Common Data Inputs and Data Outputs• Dual I/O for Separate Processor and M...

product image

MCM67D709 Picture
See larger image
SeekIC No. : 004417878 Detail

MCM67D709: Features: • Single 5 V ± 5% Power Supply• 88110/88410 Compatibility: 16/60 MHz, 20/50 MHz• SelfTimed Write Cycles• Clock Controlled Output Latches• Address and Data Inp...

MCM67D709 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MCM67D709
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 5 V ± 5% Power Supply
• 88110/88410 Compatibility: 16/60 MHz, 20/50 MHz
• SelfTimed Write Cycles
• Clock Controlled Output Latches
• Address and Data Input Registers
• Common Data Inputs and Data Outputs
• Dual I/O for Separate Processor and Memory Buses
• Separate Output Enable Controlled ThreeState Outputs
• 3.3 V I/O Compatible
• High Board Density 52 Lead PLCC Package
• Can be used as Separate I/O x9 SRAM


Pinout

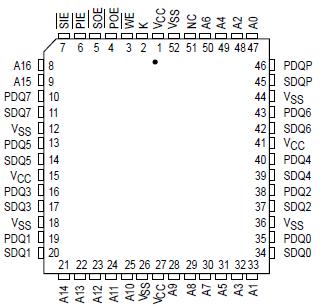

Connection Diagram


Specifications

Rating

Symbol

Value

Unit

Power Supply

VCC

0.5 to + 7.0

V

Voltage Relative to VSS for Any Pin
Except VCC

Vin,Vout

0.5 to VCC + 0.5

V

Output Current (per I/O)

Iout

±30

mA

Power Dissipation

PD

2.0

W

Temperature Under Bias

Tbias

10 to + 85

°C

Operating Temperature
TA
0 to + 70
°C
Storage Temperature

Tstg

55 to + 125

°C
