MCM6729C

Features:

• Single 5 V ± 10% Power Supply
• Fully Static - No Clock or Timing Strobes Necessary
• All Inputs and Outputs Are TTL Compatible
• Three State Outputs
• Fast Access Times: 6, 7 ns
• Center Power and I/O Pins for Reduced Noise

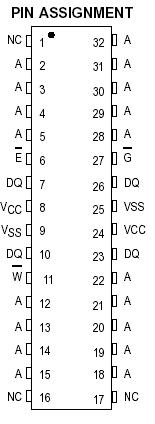

Pinout




Specifications

Rating	Symbol	Value	Unit
Power Supply Voltage	VCC	0.5 to+7.0	V
Voltage Relative to VSS for Any Pin Except VCC	Vin,Vout	0.5 to VCC + 0.5	V
Output Current	Iout	±30	mA
Power Dissipation	PD	1.5	W
Temperature Under Bias	Tbias	10 to + 85	°C
Operating Temperature	TA	0 to + 70	°C
Storage Temperature - Plastic	Tstg	55 to +125	°C

Description

  The MCM6729C is a 1,048,576 bit static random access memory organized as 262,144 words of 4 bits. Static design eliminates the need for external clocks or timing strobes. Output enable (G) is a special control feature that provides increased system flexibility and eliminates bus contention problems.

   This MCM6729C meets JEDEC standards for functionality and revolutionary pinout,and is available in a 400 mil plastic smalloutline Jleaded package.
