MCM6729B

Features:

• Single 5 V ± 10% Power Supply
• Fully Static - No Clock or Timing Strobes Necessary
• All Inputs and Outputs Are TTL Compatible
• Three State Outputs
• Fast Access Times: 8, 10, 12 ns
• Center Power and I/O Pins for Reduced Noise

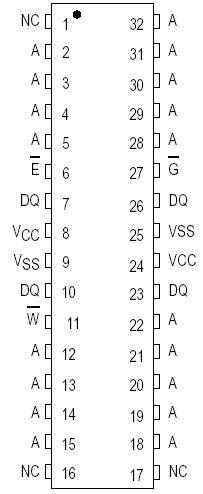

Pinout




Specifications

NOTE: Permanent device damage may occur if ABSOLUTE MAXIMUM RATINGS are exceeded. Functional operation should be restricted to RECOMMENDED OPERATING CONDITIONS. Exposure to higher than recommended voltages for extended periods of time could affect device reliability.

Description

The MCM6729B is a 1,048,576 bit static random access memory organized as 262,144 words of 4 bits. Static design eliminates the need for external clocks or timing strobes.

Output enable (G) of the MCM6729B is a special control feature that provides increased system flexibility and eliminates bus contention problems.

This MCM6729B meets JEDEC standards for functionality and revolutionary pinout, and is available in a 400 mil plastic smalloutline Jleaded package.
