MCM6728B

Features: • Single 5 V ± 10% Power Supply• Fully Static - No Clock or Timing Strobes Necessary• All Inputs and Outputs Are TTL Compatible• Three State Outputs• Fast Access Times: 8, 10, 12 ns• Center Power and I/O Pins for Reduced NoisePinoutSpecifications ...

product image

MCM6728B Picture
See larger image
SeekIC No. : 004417861 Detail

MCM6728B: Features: • Single 5 V ± 10% Power Supply• Fully Static - No Clock or Timing Strobes Necessary• All Inputs and Outputs Are TTL Compatible• Three State Outputs• Fast Acc...

MCM6728B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MCM6728B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 5 V ± 10% Power Supply
• Fully Static - No Clock or Timing Strobes Necessary
• All Inputs and Outputs Are TTL Compatible
• Three State Outputs
• Fast Access Times: 8, 10, 12 ns
• Center Power and I/O Pins for Reduced Noise

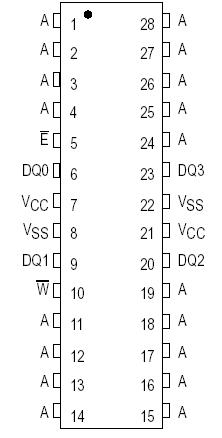

Pinout

Connection Diagram


Specifications

Rating Symbol Value Unit
Power Supply Voltage VCC 0.5 to + 7.0 V
Voltage Relative to VSS for Any Pin
Except VCC		 Vin, Vout 0.5 to VCC + 0.5 V
Output Current (per I/O) Iout ± 30 mA
Power Dissipation PD 2.0 W
Temperature Under Bias Tbias 10 to + 85 °C
Operating Temperature TA 0 to + 70 °C
Storage Temperature - Plastic Tstg 55 to + 125 °C

NOTE: Permanent device damage may occur if ABSOLUTE MAXIMUM RATINGS are exceeded. Functional operation should be restricted to RECOMMENDED OPERATING CONDITIONS. Exposure to higher than recommended voltages for extended periods of time could affect device reliability.




Description

The MCM6728B is a 1,048,576 bit static random access memory organized as 262,144 words of 4 bits. This device is fabricated using high performance silicon gate BiCMOS technology. Static design eliminates the need for external clocks or timing strobes.

This MCM6728B meets JEDEC standards for functionality and revolutionary pinout, and is available in a 400 mil plastic smalloutline Jleaded package.
