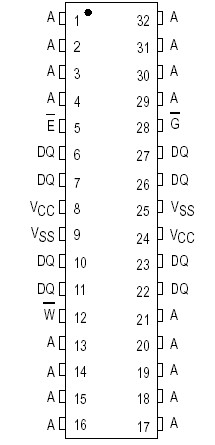

Features: • Single 5 V ± 10% Power Supply• Fully Static - No Clock or Timing Strobes Necessary• All Inputs and Outputs Are TTL Compatible• Three State Outputs• Fast Access Times: 8, 10, 12 ns• Center Power and I/O Pins for Reduced NoisePinoutSpecifications ...
MCM6726D: Features: • Single 5 V ± 10% Power Supply• Fully Static - No Clock or Timing Strobes Necessary• All Inputs and Outputs Are TTL Compatible• Three State Outputs• Fast Acc...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Rating | Symbol | Value | Unit |
Power Supply Voltage | VCC | 0.5 to + 7.0 | V |
Voltage Relative to VSS for Any Pin Except VCC | Vin, Vout | 0.5 to VCC + 0.5 | V |
Output Current | Iout | ± 30 | mA |
Power Dissipation | PD | 1.2 | W |
Temperature Under Bias | Tbias | 10 to + 85 | |
Operating Temperature | TA | 0 to + 70 | |
Storage Temperature - Plastic | Tstg | 55 to + 125 |
