Product Details

Description



Features:

• Single 5 V ± 10% Power Supply
• Fully Static - No Clock or Timing Strobes Necessary
• All Inputs and Outputs are TTL Compatible
• Center Power and I/O Pins for Reduced Noise
• Three State Outputs
• Fast Access Times: MCM6709AR6 = 6 ns MCM6709AR7 = 7 ns

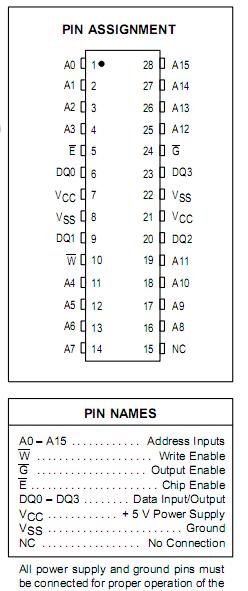

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Power Supply Voltage
VCC
0.5 to + 7.0
V
Voltage Relative to VSS for Any Pin
Except VCC
Vin, Vout
0.5 to VCC + 0.5
V
Output Current (per I/O)
Iout
± 30
mA
Power Dissipation
PD
2.0
W
Temperature Under Bias
Tbias
10 to + 85
°C
Operating Temperature
TA
0 to + 70
°C
Storage Temperature - Plastic
Tstg
55 to + 125
°C



Description

The MCM6709AR is a 262,144 bit static random access memory organized as 65,536 words of 4 bits, fabricated using highperformance silicongate BiCMOS technology. Static design eliminates the need for external clocks or timing strobes.

Output enable (G) of the MCM6709AR is a special control feature that provides increased system flexibility and eliminates bus contention problems. The MCM6709AR meets JEDEC standards and is available in a revolutionary pinout 300 mil, 28 lead plastic surfacemount SOJ package.
