MCM6709A

Features:

• Single 5 V ± 10% Power Supply
• Fully Static - No Clock or Timing Strobes Necessary
• All Inputs and Outputs are TTL Compatible
• Three State Outputs
• Fast Access Times:
MCM6709A8 = 8 ns
MCM6709A10 = 10 ns
MCM6709A12 = 12 ns

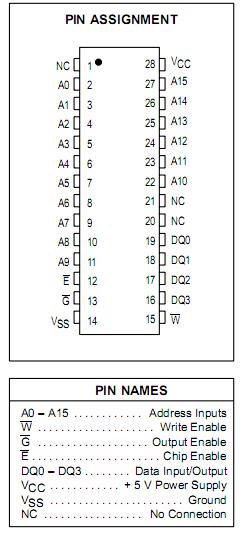

Pinout




Specifications

Rating	Symbo	Value	Unit
Power Supply Voltage	VCC	0.5 to + 7.0	V
Voltage Relative to VSS for Any Pin Except VCC	Vin, Vout	0.5 to VCC + 0.5	V
Output Current (per I/O)	Iout	± 30	mA
Power Dissipation	PD	2.0	W
Temperature Under Bias	Tbias	10 to + 85	°C
Operating Temperature	TA	0 to + 70	°C
Storage Temperature - Plastic	Tstg	55 to + 125	°C

Description

The MCM6709A is a 262,144 bit static random access memory organized as 65,536 words of 4 bits, fabricated using highperformance silicongate BiCMOS technology. Static design eliminates the need for external clocks or timing strobes.
Output enable (G) provides increased system flexibility and eliminates bus contention problems.
The MCM6709A is available in a 300 mil, 28 lead plastic surfacemount SOJ package.
