Product Details

Description



Pinout

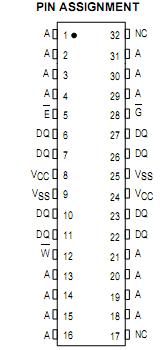

Connection Diagram


Specifications

Rating Symbol Value Unit

Power Supply Voltage

VCC

0.5 to + 7.0

V

Voltage Relative to VSSfor Any PinExcept VCC

Vin, Vout

0.5 to VCC+ 0.5

V

Output Current

Iout

±30

mA

Power Dissipation

PD

2.0

W

Temperature Under Bias

Tbias

10 to + 85

°C

Operating Temperature

TA

0 to + 70

°C

Storage Temperature - Plastic

Tstg

55 to + 125

°C




Description

The MCM6706BR is a 262,144 bit static random access memory organized as 32,768 words of 8 bits. Static design eliminates the need for external clocks or timing strobes.

Output enable (G) is a special control feature that provides increased system flexibility and eliminates bus contention problems.

The MCM6706BR meets JEDEC standards and is available in a revolutionary pinout 300 mil, 32lead surfacemount SOJ package.
