Product Details

Description



Features:

• MCM63P736/MCM63P818133 = 4 ns Access/7.5 ns Cycle (133 MHz)
  MCM63P736/MCM63P818100 = 5 ns Access/10 ns Cycle (100 MHz)
  MCM63P736/MCM63P81866 = 7 ns Access/15 ns Cycle (66 MHz)
• 3.3 V + 10%, 5% Core Power Supply, 2.5 V or 3.3 V I/O Supply
• ADSP, ADSC, and ADV Burst Control Pins
• Selectable Burst Sequencing Order (Linear/Interleaved)
• TwoCycle Deselect Timing
• Internally SelfTimed Write Cycle
• Byte Write and Global Write Control
• Sleep Mode (ZZ)
• PB1 Version 2.0 Compatible
• JEDEC Standard 119Pin PBGA and 100Pin TQFP Packages



Pinout

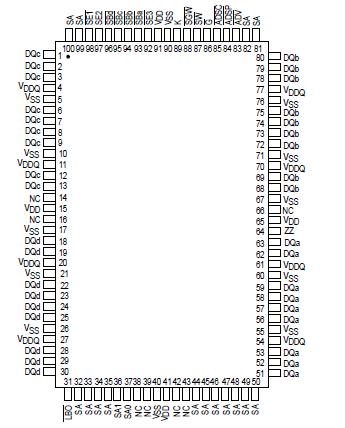

  Connection Diagram


Specifications

Rating Symbol Value Unit Notes
Power Supply Voltage VDD VSS 0.5 to + 4.6 V
I/O Supply Voltage VDDQ VSS 0.5 to VDD V 2
Input Voltage Relative to VSS for
Any Pin Except VDD
Vin, Vout VSS 0.5 to
VDD + 0.5
V 2
Input Voltage (ThreeState I/O) VIT VSS 0.5 to
VDDQ + 0.5
V 2
Output Current (per I/O) Iout ± 20 mA
Package Power Dissipation PD 1.6 W 3
Ambient Temperature TA 0 to 70 °C
Die Temperature TJ 110 °C 3
Temperature Under Bias Tbias 10 to 85 °C
Storage Temperature Tstg 55 to 125 °C
NOTES:
1. Permanent device damage may occur if ABSOLUTE MAXIMUM RATINGS are
exceeded. Functional operation should be restricted to RECOMMENDED OPERATING
CONDITIONS. Exposure to higher than recommended voltages for extended
periods of time could affect device reliability.
2. This is a steadystate DC parameter that is in effect after the power supply has
achieved its nominal operating level. Power sequencing is not necessary.
3. Power dissipation capability is dependent upon package characteristics and use
environment. See Package Thermal Characteristics.



Description

The MCM63P736 and MCM63P818 are 4M bit synchronous fast static RAMs designed to provide a burstable, high performance, secondary cache for the PowerPCE and other high performance microprocessors. The MCM63P736 is organized as 128K words of 36 bits each and the MCM63P818 is organized as 256K words of 18 bits each. These devices integrate input registers, an output register, a 2bit address counter, and high speed SRAM onto a single monolithic circuit for reduced parts count in cache data RAM applications. Synchronous design allows precise cycle control with the use of an external clock (K).

Addresses (SA), data inputs (DQx), and all control signals except outputenable (G), sleep mode (ZZ), and linear burst order (LBO) are clock (K) controlled through positiveedgetriggered noninverting registers.

Bursts can be initiated with either ADSP or ADSC input pins. Subsequent burst addresses can be generated internally by the MCM63P736 and MCM63P818 (burst sequence operates in linear or interleaved mode dependent upon the state of LBO) and controlled by the burst address advance (ADV) input pin. Write cycles are internally selftimed and are initiated by the rising edge of the clock (K) input. This feature eliminates complex offchip write pulse generation and provides increased timing flexibility for incoming signals.

Synchronous byte write (SBx), synchronous global write (SGW), and synchronous write enable (SW) are provided to allow writes to either individual bytes or to all bytes. The bytes are designated as "a", "b", etc. SBa controls DQa, SBb controls DQb, etc. Individual bytes are written if the selected byte writes SBx are asserted with SW. All bytes are written if either SGW is asserted or if all SBx and SW are asserted.

For read cycles, pipelined SRAMs output data is temporarily stored by an edgetriggered output register and then released to the output buffers at the next rising edge of clock (K).

The MCM63P736 and MCM63P818 operate from a 3.3 V core power supply and all outputs operate on a 2.5 V or 3.3 V power supply. All inputs and outputs are JEDEC standard JESD85 compatible.
